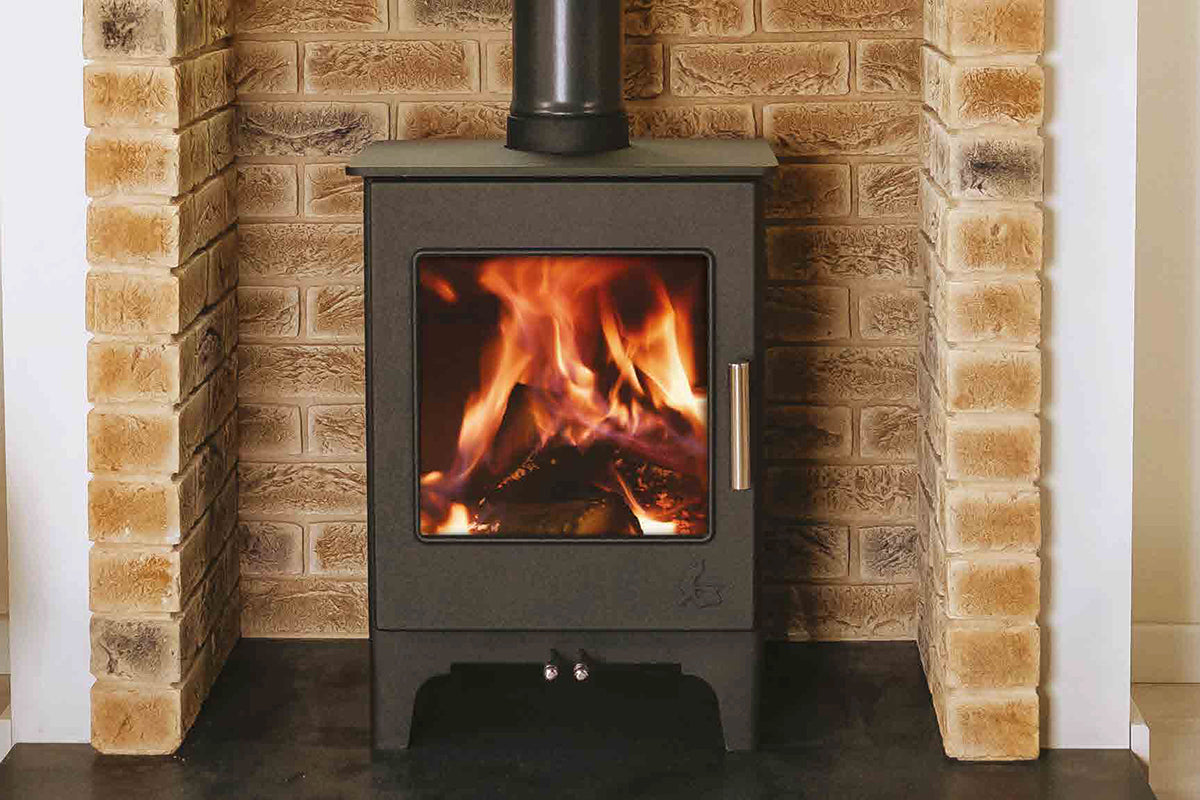

Woodbury 5 Eco


The British made Defra Approved Woodbury 5 Eco comes as either a wood burner or as a multi fuel stove and offers you an excellent A+ rated fuel efficiency of over 82% whichever fuel you burn. The Woodbury 5 Eco also produces minimum emissions and has been given the highest possible rating in the ClearSkies mark, the independent emissions and energy performance scheme.

With a nominal heat output of 5.0kW and an unfussy modern design the Woodbury 5 Eco will work well and look great in any small to medium sized living space whatever the fireplace or room's interior styling. It can also be installed on a decorative non-combustible 12mm hearth to provide you with greater installation flexibility. With the Closed Combustion Manifold (DEAS) option you can also feed the Woodbury 5 directly with an external air supply and avoid having to add an air vent when installing it in a post-2008 home. Direct air can also help to reduce cold draughts in older houses.

The Woodbury 5 Eco has two separate discreet stainless steel push-pull controls just below the door to provide maximum control over the heat output and flame height. The powerful pre-heated secondary air wash will help keep the larger than average window clear. There's a robust matching stainless steel stay cool handle to securely clamp the full width door, with its concealed hinges, firmly closed. The Woodbury 5 Eco carries a 5-year manufacturer's warranty from one of the UK's most respected stove makers.

Also check out the Dean Stove's Woodbury 5 Eco Slimline which is 125mm (5") wider and only 325mm deep.



Heat output  nominal  5.0kW
Output range   3.0kW to 7.0kW depending on fuel load (estimate)
Efficiency                           82.4% Wood / 82.2% Smokeless Coal
ErP Energy Rating                            A+
Defra Approved                                  Yes
ClearSkies  Level 5 (the highest Level)
Fuel                                                    Seasoned wood logs / Approved smokeless coal
Airwash                                                Yes
Air Controls                                          Two separate push-pull controls
Construction                                          British cast iron door and premium quality steel bodywork
Flue Outlet                                             Top or Rear
Flue Diameter                                    125mm  / 5"
Grate Type                                            Wood burner has flat bed / MF model has open multi fuel grate with ash pan
Guarantee                                              5 Years
Maximum Log Length                         330mm (13")
Standard Colour                          Matt Black
Optional Finishes                            8 designer colours including Grey, Charcoal, Champagne and Mushroom
Options                                        Wood burning or multi fuel model options
                                                    Direct external air supply manifold
                                                    Back Box – space saving 180mm deep rear flue adaptor
Weight                                              N/A
Air Vent Required                                Not usually in pre-2008 homes (Subject to Building Regs)
Suitable for 12mm hearth                       Yes
Direct External Air Inlet (DEAS)         Yes. Closed Combustion Manifold required
Overall Dimensions mm                       H635  W460  D345 (385 inc handle)
Combustible Distances mm                   Sides 400  Rear 200



Dean Stoves Woodbury 5 Eco Download Files:

Woodbury 5 Eco Operational Instructions

Dean Stoves Brochure
