Summum 70 C Gas Fire

Element4 Summum 70 C Corner Gas Fire

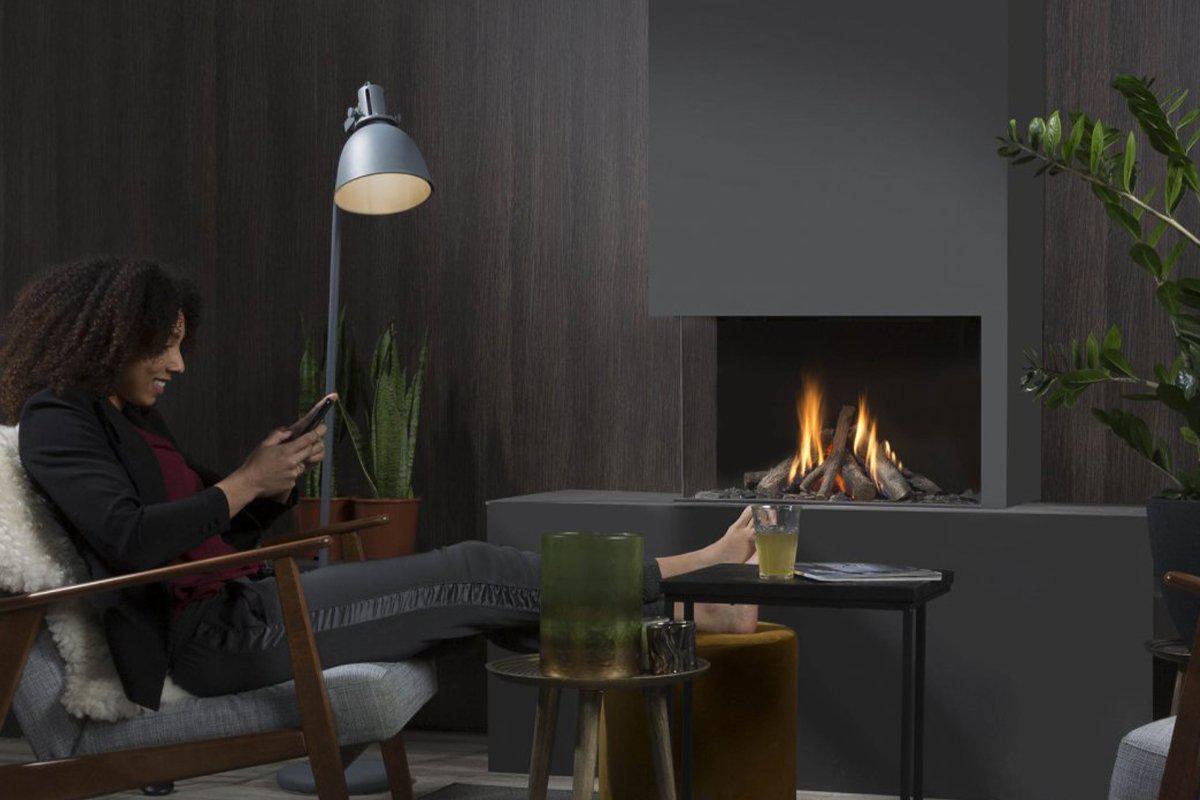

The striking landscape format Summum 70 C feature gas fire has been designed by the award-winning Element4 to make an outstanding visual statement in a corner setting of a typical sized living space. Our photograph shows it in a cutaway purpose designed mock chimney breast. It has a practical footprint of just 749mm wide by 388mm deep (plus any non-combustible housing) so Summum 70 C never going to take up a huge amount of floor space either and of course you can also add some attractive decorative storage or display spaces within the housing structure. When you consider The Summum 70 C's minimalist frameless structure and virtually seamless glass corner (especially when the anti-reflection glass which eliminates unwanted reflections and glare is specified) you can easily understand why this gas fire is the architect's and interior designer's number one choice when it comes to specifying contemporary corner gas fires.

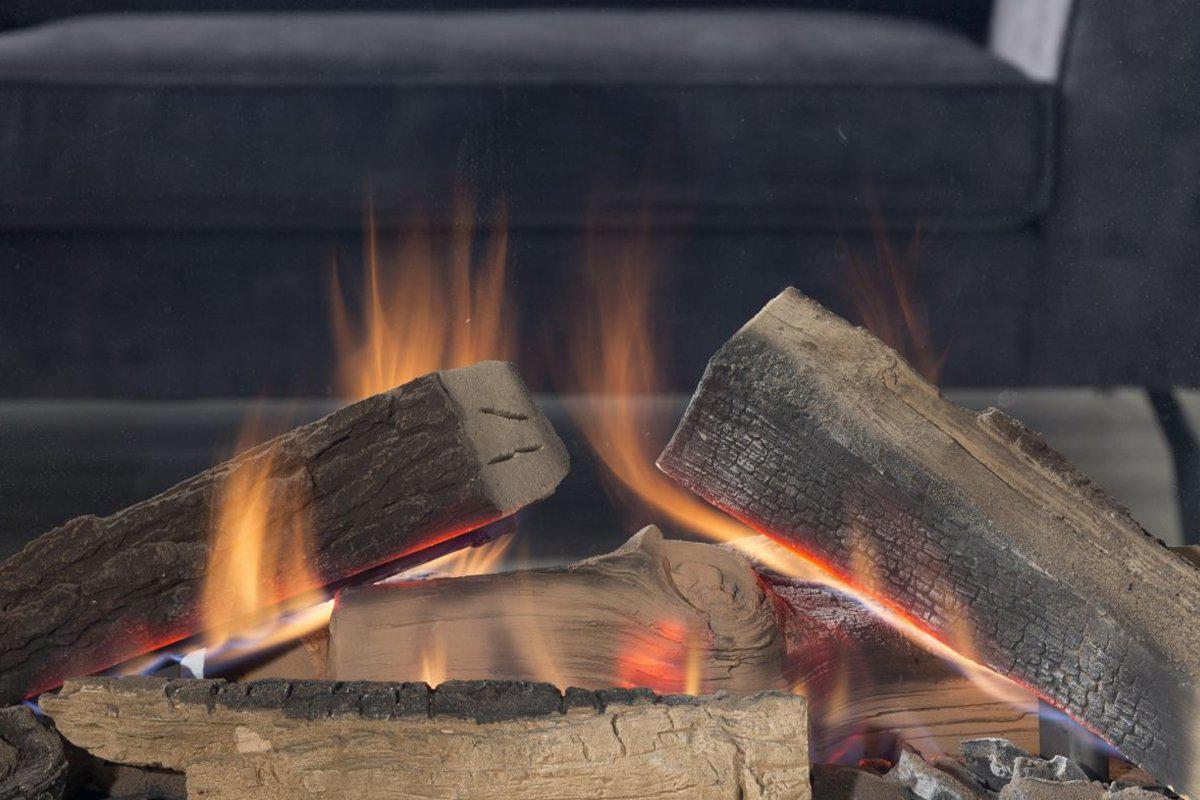

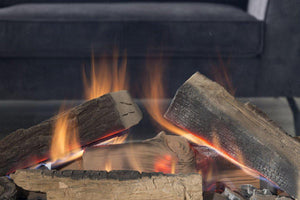

However, we'd like to think that it also has something to do with the Summum 70 C's super-reaistic log effect fire, which we believe is one of the best looking from any manufacturer. This is all down to Element4's advanced Real Flame Burner which features an additional specialist LED lighting system designed to play light on the surfaces of the lifelike ceramic logs. This, along with the different gas flame patterns moving underneath and around the logs, helps to create a highly naturalistic flame picture which is comprehensively controlled via the E-Save remote included as standard. If you prefer there's the optional ProControl app which allows you to do this with your smart phone or tablet. The Summum 70 C has a heat output range from 2.6kW up to 7.6kW with an A-rated efficiency of 88% which makes it, not only a great looking heat source, but also one that is also practical and cost-effective as well as very easy to live with.

For complete installation flexibility, when specified with Element4's balanced flue PowerFan system the Summum 70 C, can be installed almost anywhere in your home, subject to building regulations – it doesn't need a chimney. With the Powerfan's ability to extend the balanced flue system you can position the Summum 70 C up to 36 metres away from an exterior wall and it will still work perfectly.

The Summum 70 C's back fire box wall is matt black metal to contrast with the bright vibrant flame colours but this can also be upgraded to shiny black glass to reflect and 'double-up' the flame pattern to fill the Summum's two big windows with dancing light. Choose either natural gas or LPG operation. NB With the Summum 70 F there are no other fuel bed options.

Installing the Summum 70 C

Please refer to the dimensional drawings for comprehensive measurements and, of course, as authorised Element4 dealers The Stove Yard will be happy to provide specifiers of the Summum 70 C with the information and technical expertise to ensure its efficient and safe installation. Alternatively, for peace of mind The Stove Yard can arrange for a Gas Safe registered engineer, who is experienced in installing Element4 gas appliances, to fit your Summum 70 C for you.


Key Facts

Summum 70 C

Burner(s): Real Flame Burner M LED
Type of fireplace: Gas fires
Net natural gas capacity (min-max) G25: 2,9 - 7,3 kW
Net natural gas capacity (min-max) G20: 2,6 - 7,9 kW
Net propane capacity (min-max) G31: 2,0 - 6,8 kW
Efficiency: 88%
Black steel: (Standard)
Black glass: (Optional)
Connect to home automation: (Optional)
Operation via app: (Optional)
Powerfan: (Optional)
Anti-reflective glass: (Optional)
Control panel: (Optional)
Wall switch: (Optional)
Remote control: (Standard)
Convection schedule (s): (Optional)
Puck: (Optional)
Video
Technical




Burner

Burner System for the Summum 70 C

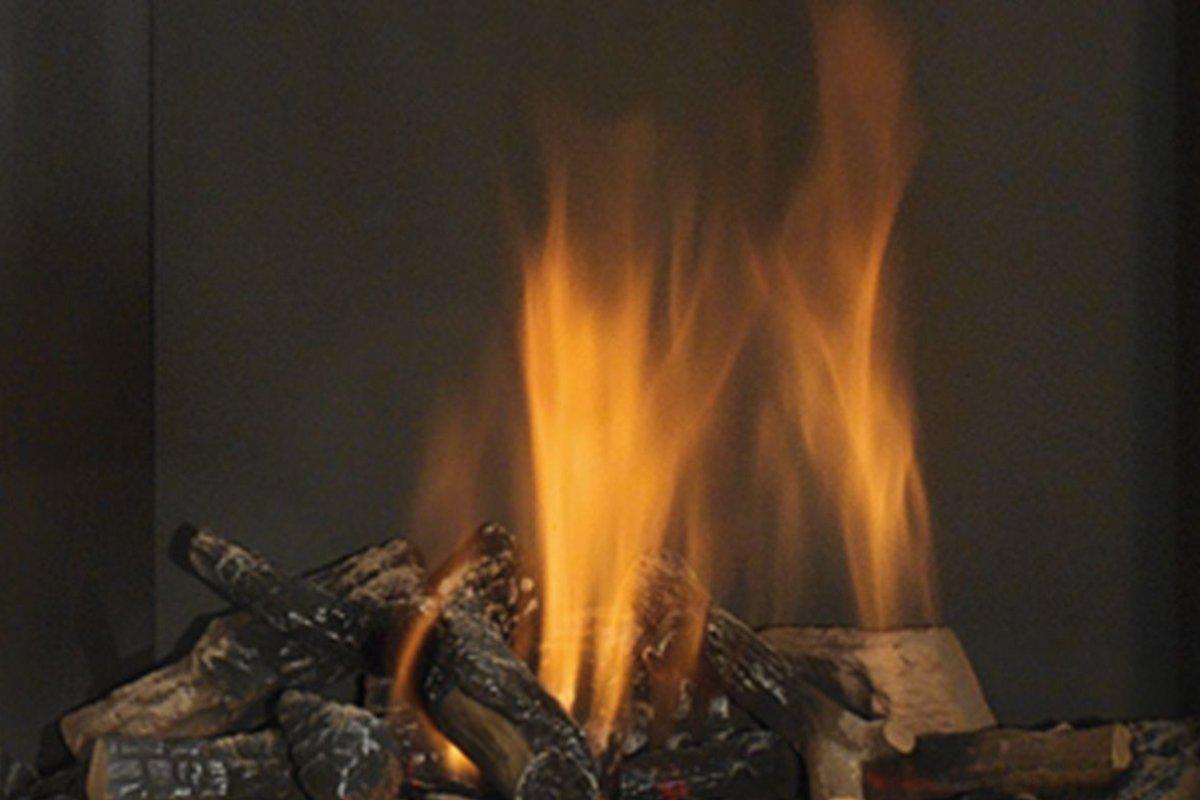

REAL FLAME BURNER M LED  The Real Flame Burner provides the world’s most natural-looking gas fire.  In addition, the special LED lighting effect on the fire surface provides a glowing ember effect.  The flames, in combination with the expertly crafted logs, will have you thinking you just lit up a modern campfire in your living room.




Element4 is the responsible fireplace company

With the multi-burner system and the eco-mode, you can enjoy your fireplace as a room heater and know that you are being as efficient as possible. Why use more gas than you need to? Why heat your whole house if you don’t have to? Area heating with great design, from a company that considers environmental issues. Some companies are ok to send the heat outside – not Element4 they are responsible when it comes to OUR environment.
