Summum 100 3/S Gas Fire

Element4 Summum 100 3/S Three-Sided Gas Fire

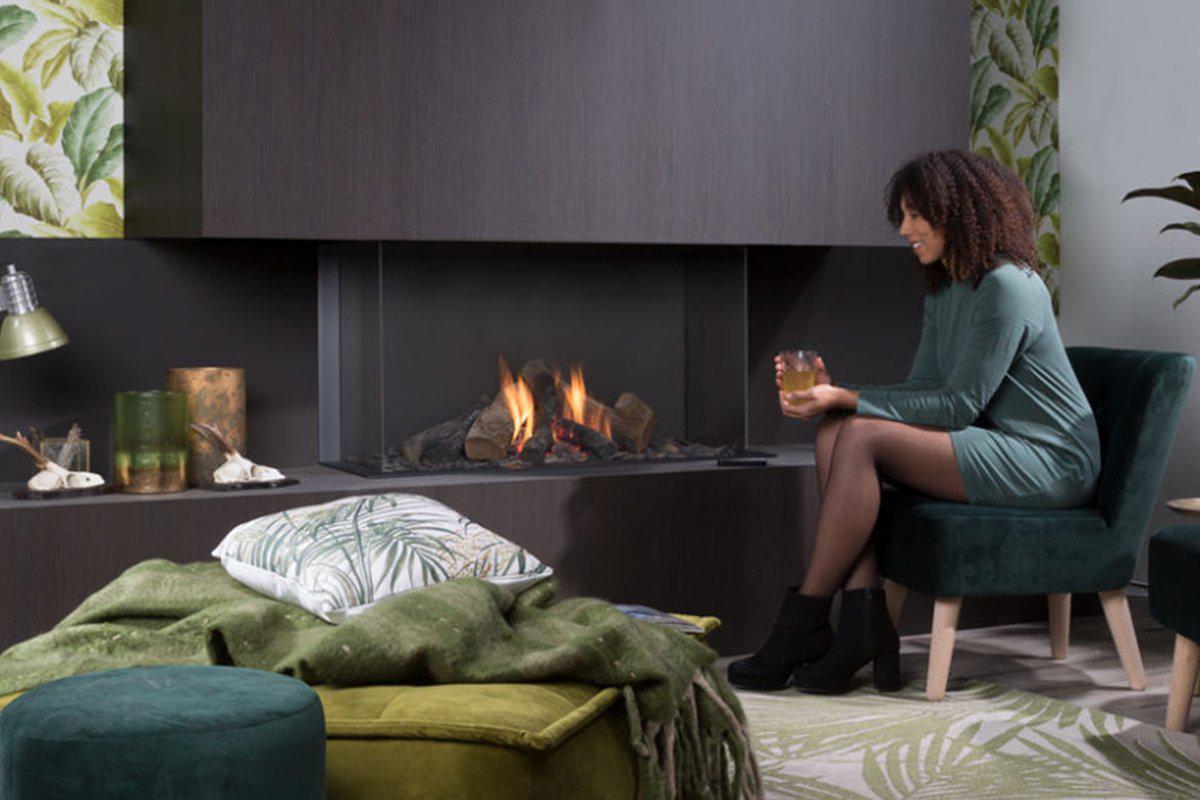

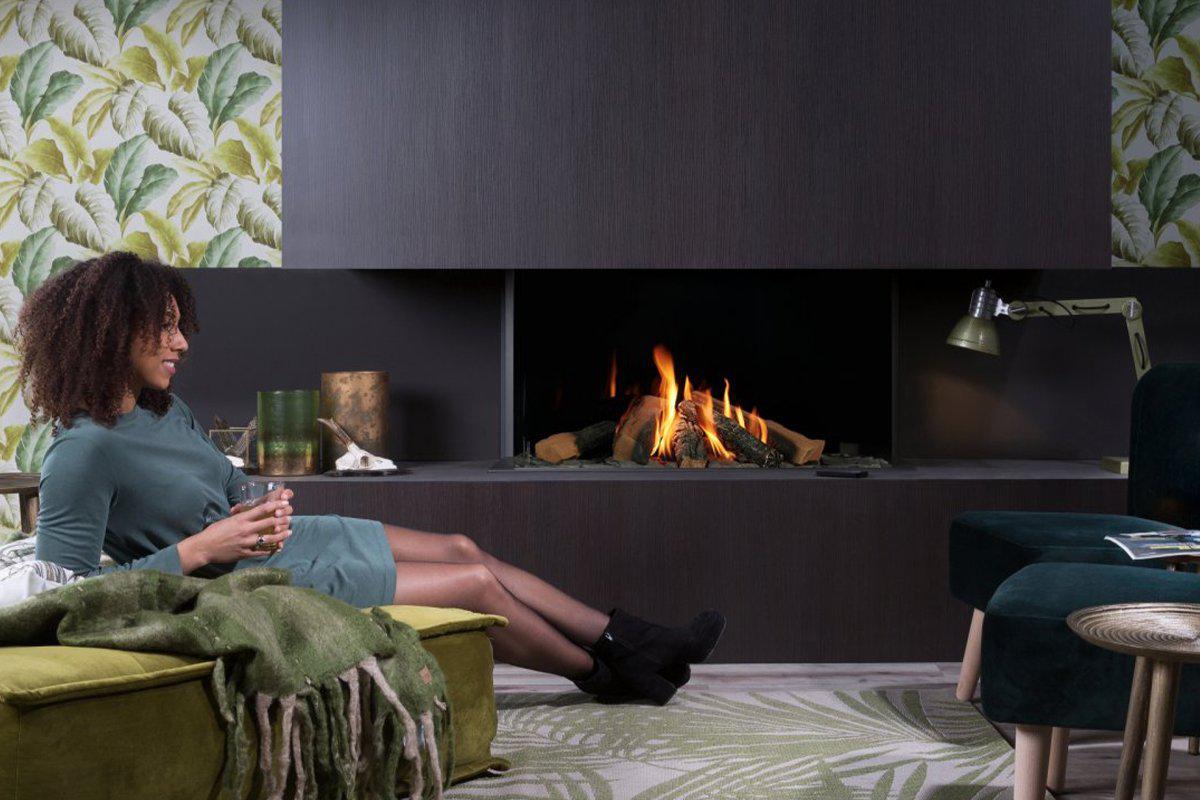

The Summum 100 3/S is one of five Element4 three sided gas fires and has a viewable width of just under one metre to provide you with an impressive view of its spectacular flame picture. It has a controllable heat output range between 2.7kW  and 10.7kW  and an A-rated efficiency of 89% which makes it perfectly suited for cost-effectively and quickly warming up even the largest of living spaces. Being a wide bodied three-sided fire with minimalist frameless design and virtually seamless window corners the Summum 100 3/S  lends itself to contemporary styled installations set within deep purpose-built mock feature chimney breasts and island dividers which incorporate a modern fireplace. This is where the full depth and height of the highly realistic fuel bed and flame picture can be designed in to be fully appreciated wherever you are in the room.

Element4's E-Save remote control comes as standard with the Summum 100 3/S to allow you to create the perfect room ambience with various burner options and room temperatures. The ProControl app option will also allow you to manage this with your smart phone or tablet. The Summum 100 3/S incorporates Element4's advanced Real Flame Burner technology. As well as a series of angled gas burners it also features an LED lighting effect system which when brought together with the highly realistic ceramic logs creates one of the most lifelike fuel beds and flame patterns we've seen anywhere. Element4 also give a choice of alternative fuel beds from either white Carrera pebble or white or grey stone effect.

Like all Element4 gas fires (that's why we love them) the Summum 100 3/S can offer you complete installation flexibility, when specified with the optional balanced flue PowerFan system. This means that the Summum 100 3/S, can be placed almost anywhere in your home, including in the middle of a large open plan living space, subject to building regulations. You won't even need a chimney because the Powerfan has the ability to extend the Summum's balanced flue system up to an incredible 36 metres away from an external wall. It will then regulate the correct supply of combustion air whilst ensuring there's a sufficient opposite flow of harmful combustion gases for completely safe operation and without diminishing performance.

Further options which are all designed to enhance the stunning god looks of the Summum 100 3/S include anti-reflection glass designed to minimise glare and reflections and a shiny black glass back wall which instead uses reflections to effectively double-up the flame pattern and help fill the big window. Both highly recommended if you want the very best from your living flame experience. Please specify either natural gas or LPG operation.

Installing the Summum 100 3/S

Please refer to the dimensional drawings for comprehensive measurements and, of course, as authorised Element4 dealers The Stove Yard will be happy to provide specifiers of the Summum 100 3/S with the information and technical expertise to ensure its efficient and safe installation. Alternatively, for peace of mind The Stove Yard can arrange for a Gas Safe registered engineer, who is experienced in installing Element4 gas appliances, to fit your Summum 100 3/S for you.


Key Facts

Summum 100 3/S

Burner(s): Real Flame Burner M LED
Type of fireplace: Gas fires
Net natural gas capacity (min-max) G25: 2,9 - 10,6 kW
Net natural gas capacity (min-max) G20: 2,7 - 11,4 kW
Net propane capacity (min-max) G31: 2,9 - 11,5 kW
Efficiency: 89%
Black steel: (Standard)
Black glass: (Optional)
Connect to home automation: (Optional)
Operation via app: (Optional)
Powerfan: (Optional)
Anti-reflective glass: (Optional)
Control panel: (Optional)
Wall switch: (Optional)
Remote control: (Standard)
Convection schedule (s): (Optional)
Puck: (Optional)
Video
Technical




Burner

Burner System for the Summum 100 3/S

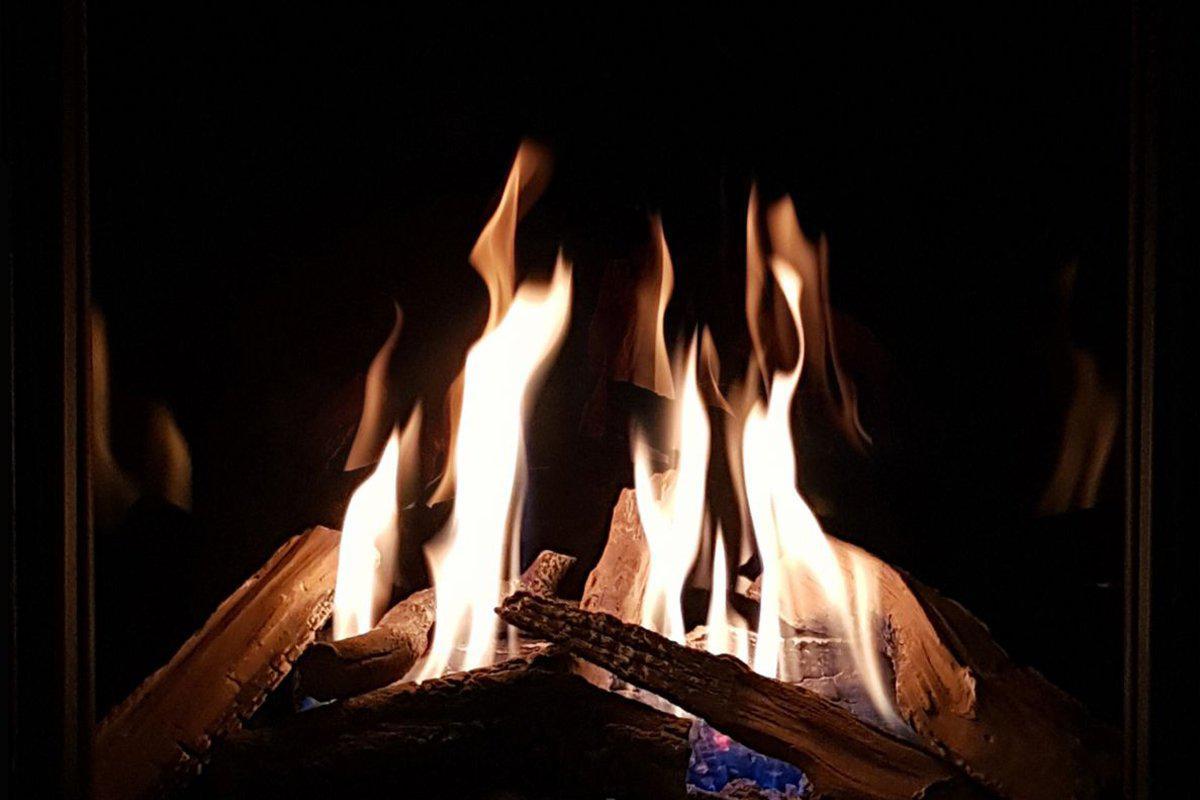

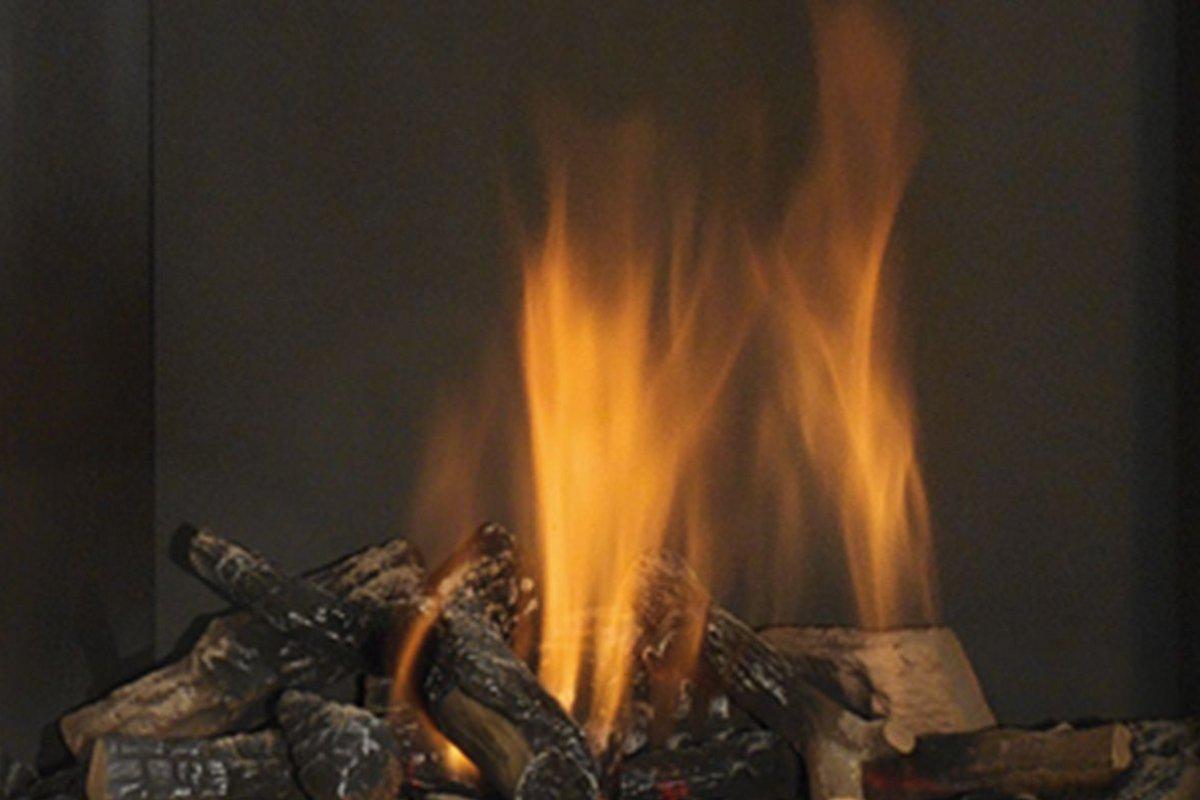

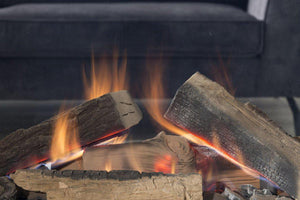

REAL FLAME BURNER M LED  The Real Flame Burner provides the world’s most natural-looking gas fire.  In addition, the special LED lighting effect on the fire surface provides a glowing ember effect.  The flames, in combination with the expertly crafted logs, will have you thinking you just lit up a modern campfire in your living room.




Element4 is the responsible fireplace company

With the multi-burner system and the eco-mode, you can enjoy your fireplace as a room heater and know that you are being as efficient as possible. Why use more gas than you need to? Why heat your whole house if you don’t have to? Area heating with great design, from a company that considers environmental issues. Some companies are ok to send the heat outside – not Element4 they are responsible when it comes to OUR environment.
