Charnwood C-FOUR BLU

CHARNWOOD C-FOUR BLU WOOD BURNING STOVE

We're very fond of this little British-made Charnwood classic. The best-selling Defra Approved C-Four wood burner features beautifully gentle curves which are neither traditional or ultra modern so that it’s going to look equally good with any interior or fire surround style. The C-Four Blu operates at the higher end of stove efficiencies (A+ / 82.0%) with a nominal heat output of 4.9kW which means that there is no requirement for a dedicated air vent in a pre-2008 house. The heat output range starts at just 2.0kW and goes up to a a handy 5.5kW, depending on the wood fuel load. The C-Four Blu is also incredibly clean-burning with the new, independently verified emissions standard ClearSkies Mark, awarding it their highest Level 5 rating.

The Charnwood C-Four features one single push / pull air control for very easy operation and fuel management. At the base of the C-Four firebox is a sealed manifold where the correct amount of primary (lower) and secondary (upper) combustion air is mixed for total control throughout the burn cycle. The air box also incorporates the main 80mm diameter direct external air supply (DEAS) inlet at the rear which can be easily connected to the outside air with optional non-combustible connecting duct and external grille. This means that the C-Four does not need to consume the hot air that it's just created or cause unwanted draughts. The secondary air is pre-heated to deliver an effective and efficient air wash down the inside of the glass to help keep it squeaky clean. The C-Four fire chamber is lined with additional steel plate (there are no traditional firebricks required) to maximise the log length up to 280mm (11").

The C-Four has a minimalist fire chamber as there is no grate or ash pan. This means that you're not paying for anything that you really don't need, thus helping to make the C-Four an attractive buy (apart from its very good looks). However, there’s also an optional drop-in open grate for easier ash removal. Other options include a choice of three heights with the standard low plinth and high legs or log store stand for added-visual presence. There’s also a rear heat shield (great for significantly reducing the distances to combustible materials) and a space-saving rear vertical flue adaptor. The C-Four comes in a choice of 8 paint finishes including Almond (Ivory) and standard black and carries a 10-year manufacturer’s warranty when purchased from an authorised Charnwood dealer.

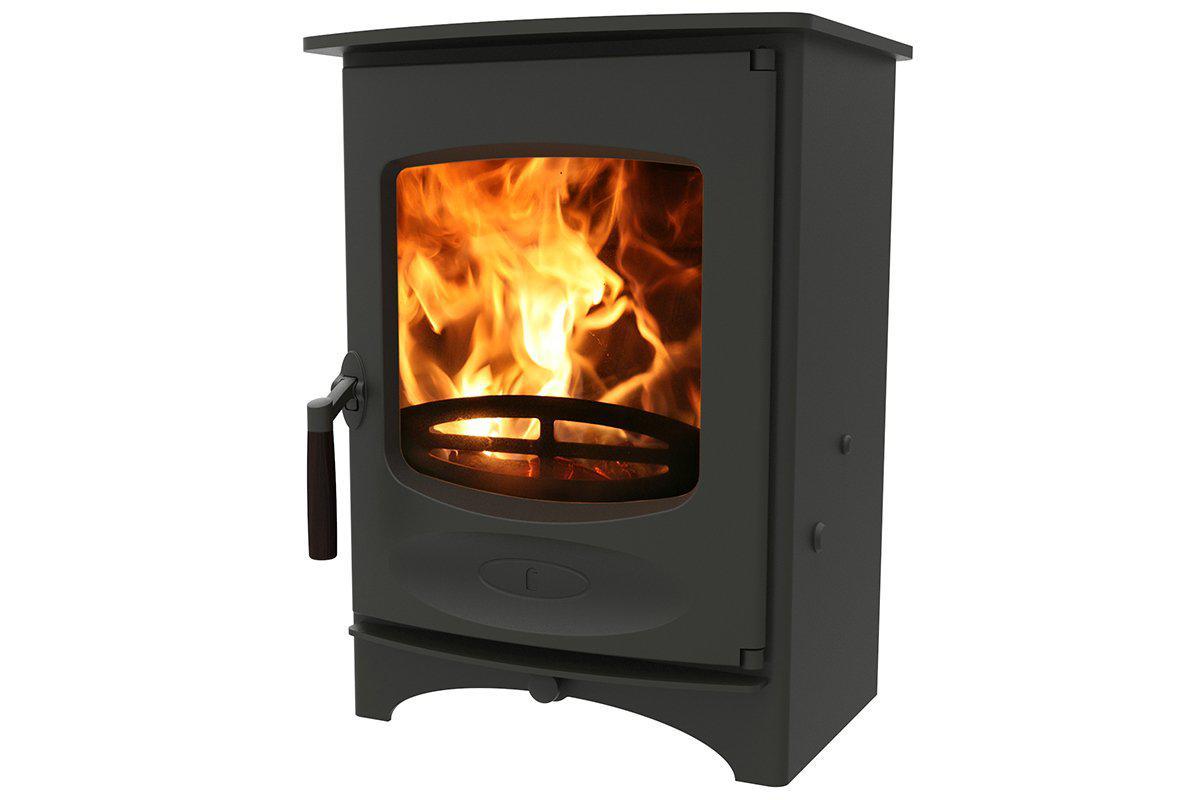

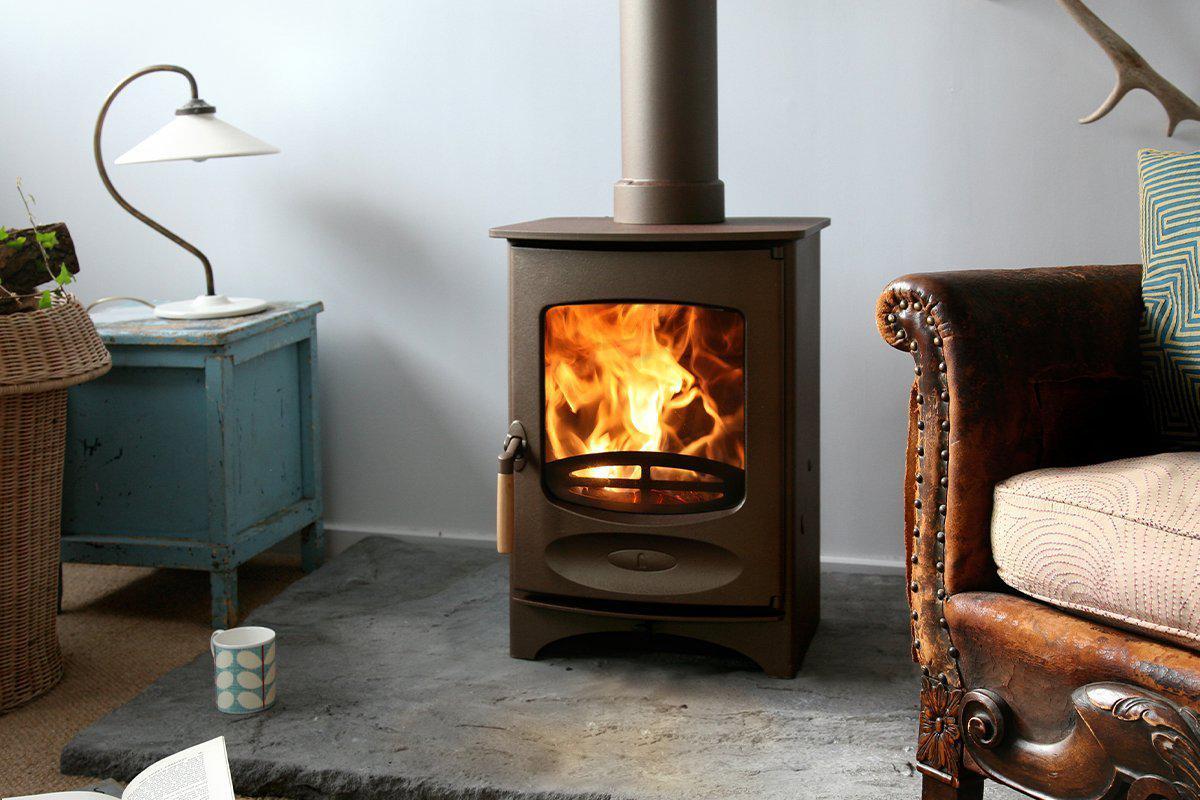

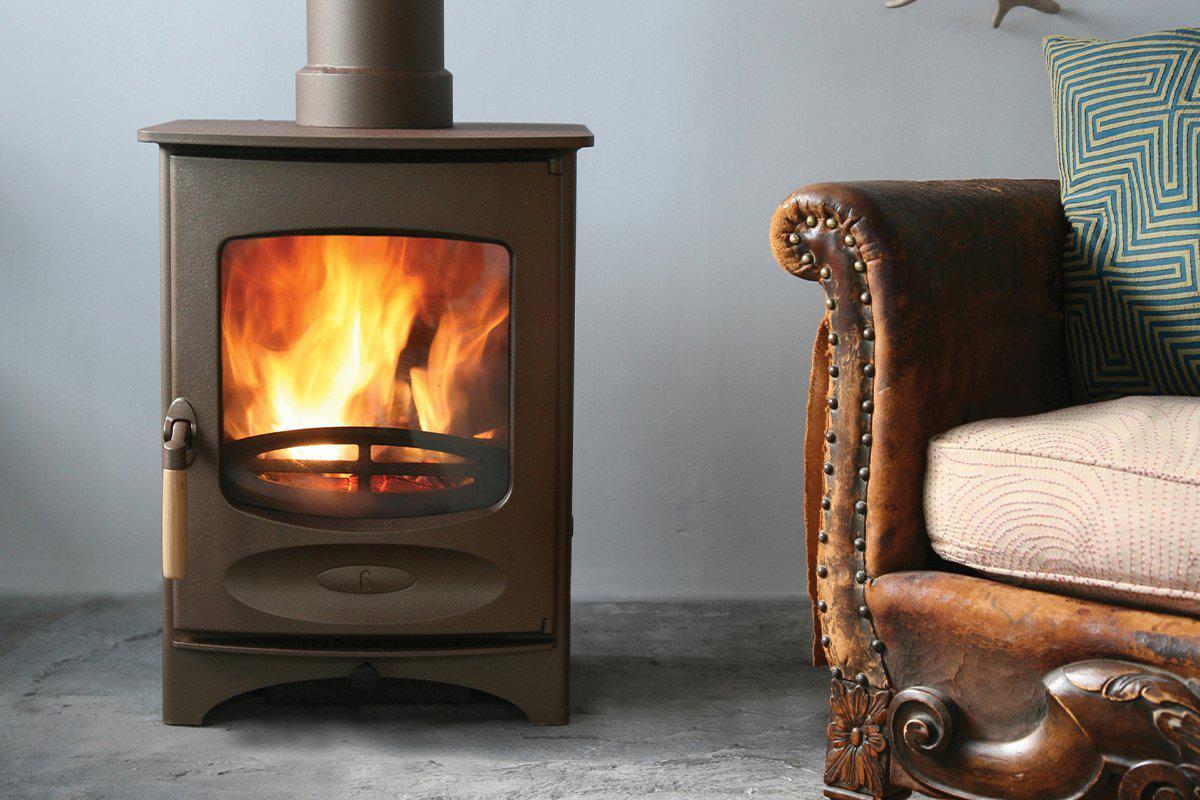

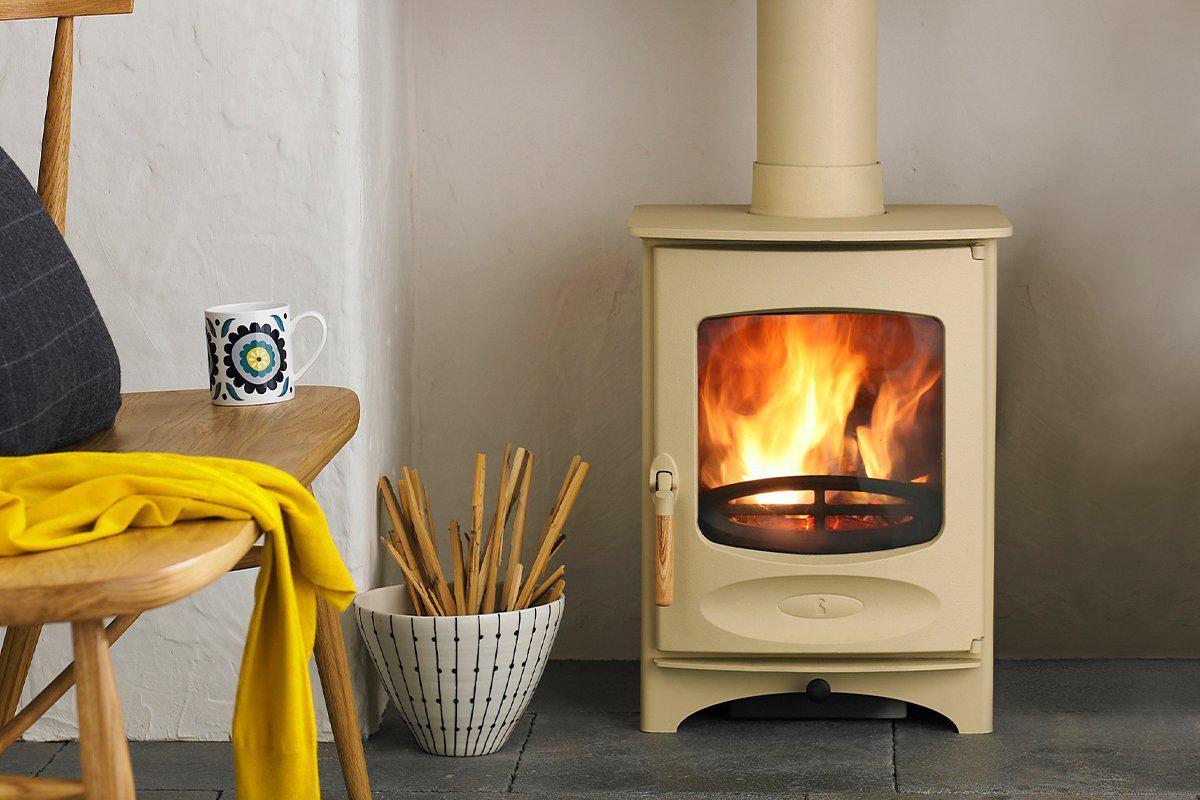

1 Low – elegant front cut out plinth: Overall height 560mm

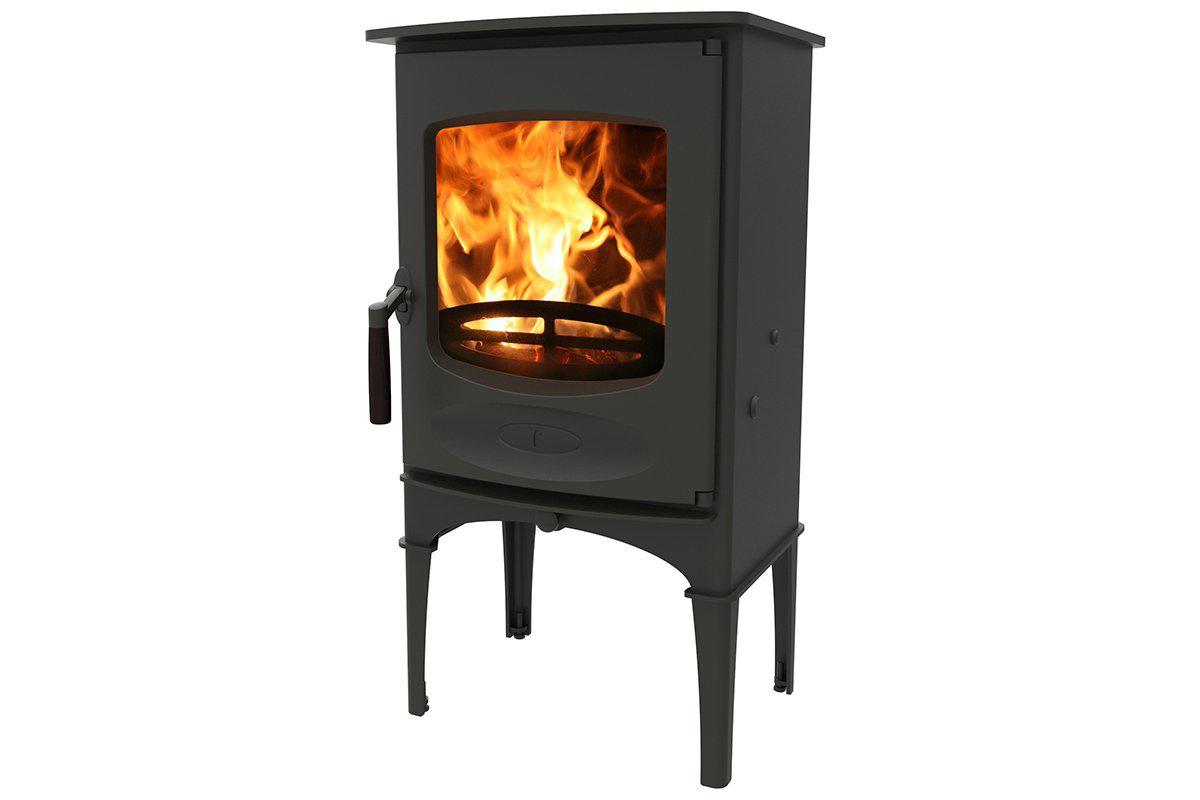

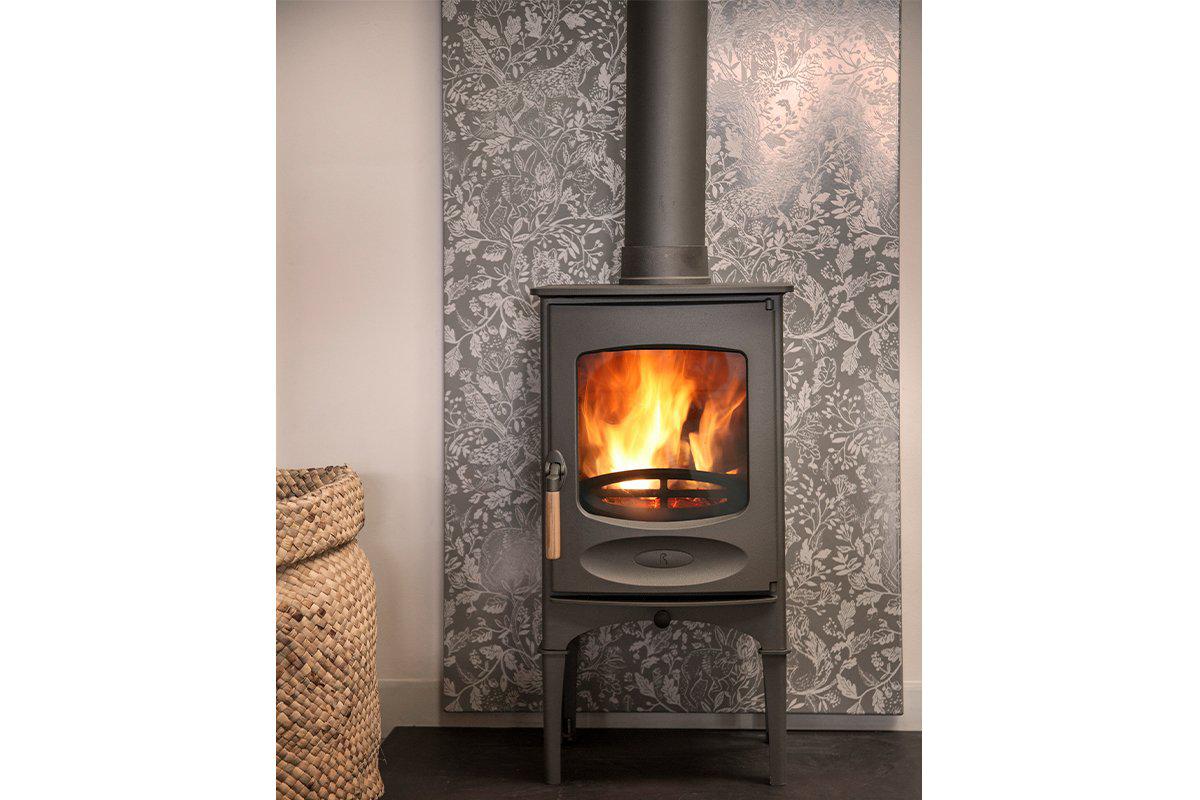

2 High Leg – graceful legs accentuate period look: Overall height 765mm

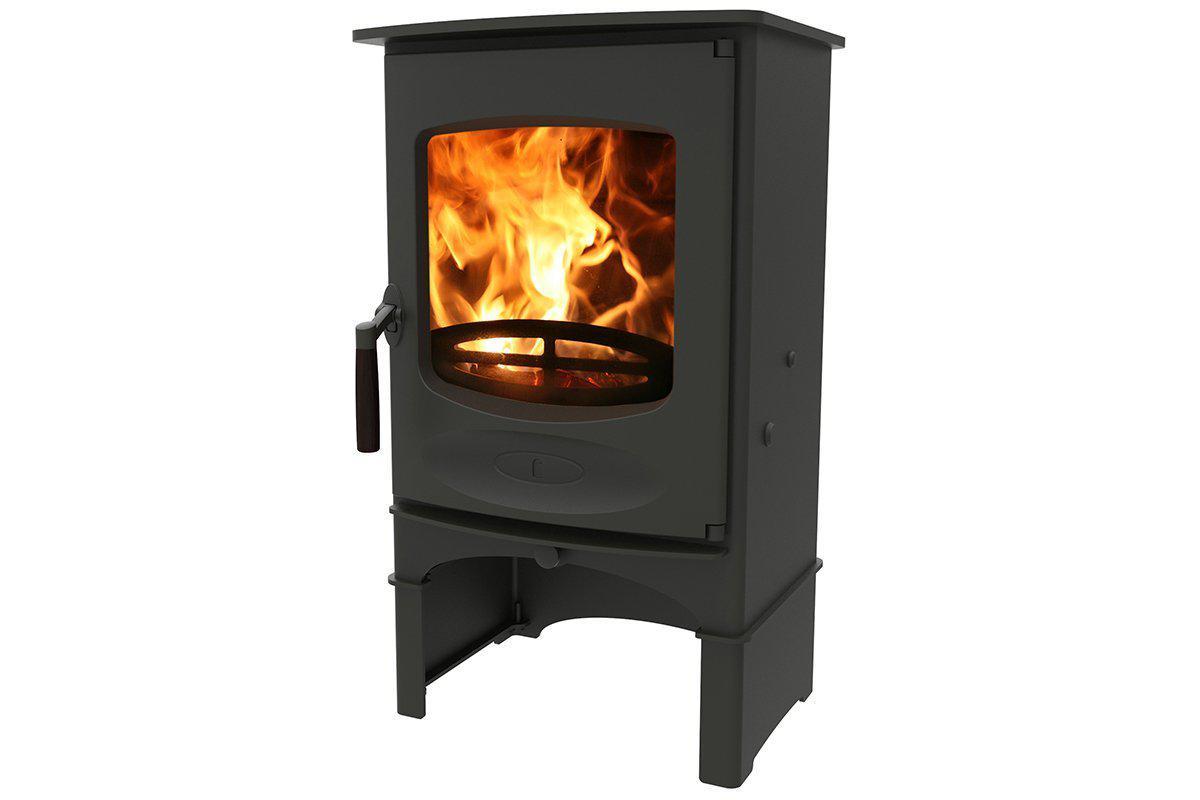

3 Store Stand – good sized storage area for logs: Overall height 745mm


 CHARNWOOD C-FOUR BLU WOOD BURNING STOVE KEY FACTS


Brand: Charnwood
Model

CHARNWOOD C-FOUR BLU WOOD BURNING STOVE

Nominal Heat Output:    Up to 4.9kW
Heat Output Range:   2.0kW to 5.5kW depending on fuel load
Efficiency (Net):

82% Wood

ErP Energy Rating A+
Defra Smoke Exempt:

Yes (no extra kit needed)

ClearSkies
Level 5 (Highest level)
Fuel:   Seasoned wood logs only
Airwash:   Yes
Air Controls:

Single push-pull Quattroflow air management system

Construction:

Cast iron doors and premium quality plate steel bodywork

Flue Outlet:    Top or rear
Flue Diameter 125mm / 5"
Grate Type Flat bed with optional drop-in reciprocating grate available
Guarantee:    10 Years
Maximum Log Length 280mm (approx 11")
Standard Colour

Traditional Black

Optional Finishes:   Soft Green, French Grey, Gunmetal or Almond
Options:   Three different base options:
Low or High Leg, Store Stand
Drop-in reciprocating grate for easy ash removal
Rear Heat Shield
Space-saving sweep-through rear flue adaptor
Cast iron cooking plate (for rear flue installations only)
Net Weight:

Low 83kg / High 85.5kg / Store 89kg

Air vent required:    Not usually in pre-2008 homes. Alternatively use stove's direct external air supply as standard
Suitable for 12mm Hearth:   Yes
Direct Air Inlet (DEAS):  Direct external air supply capability 80mm dia' inlet kit option

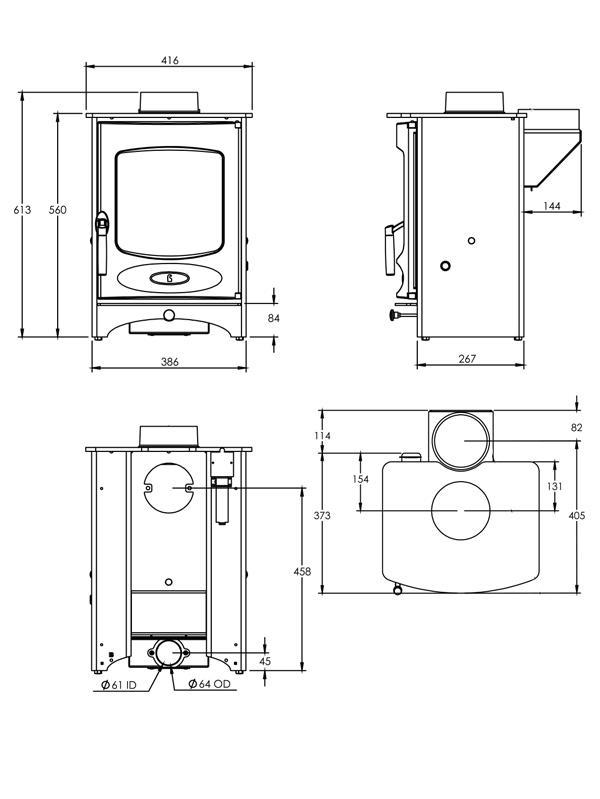

Overall Dimensions:  Low:  H560  W416  D373
High Leg:  H765  W416  D373
Store:  H710  W416  D373
Minimum Combustible Distances (mm):

Sides 500  Rear 370 (175 with optional heat shield)
