CHARNWOOD BEMBRIDGE WOOD BURNING STOVE

Charnwood’s best selling 5kW C-Five is given a more traditional look with some subtle visual tweaks to become the Country Living-inspired Charnwood Bembridge Defra approved wood burning stove. The Bembridge’s cast iron door features a striking ornamental leaf design which is echoed in the big aIr washed picture window’s gently curved and sculpted shape. In addition there’s a graceful ogee-shaped cutaway on the plinth fascia which makes a very attractive and distinctive feature especially when teamed with the optional high legs or log store stand. In short, what you get with the Bembridge is a tasteful blend of arts and crafts styling with contemporary design unlike any other stove that we know of. Importantly you also get Charnwood’s renowned all-British build quality and incredible attention to detail that will make owning and operating this stove a genuine pleasure for many years to come.

Underneath the Charnwood Bembridge’s stylish exterior is a thoroughly modern stove with a patented user-friendly, single control combustion air management system, integral external air capability as standard (essential for post-2008 homes) and highly efficient clean burn technology that has been awarded the highest Level 5 in the independently verified ClearSkies emissions and efficiency scheme. The Bembridge has an A+ efficiency of 82% and precise control of flame height and heat output to ensure that you can really maximise fuel economy and at the same time set the comfort level that’s just perfect for you. There’s a removable brass and wooden multi purpose door handle for a final traditional touch and extra safety feature.

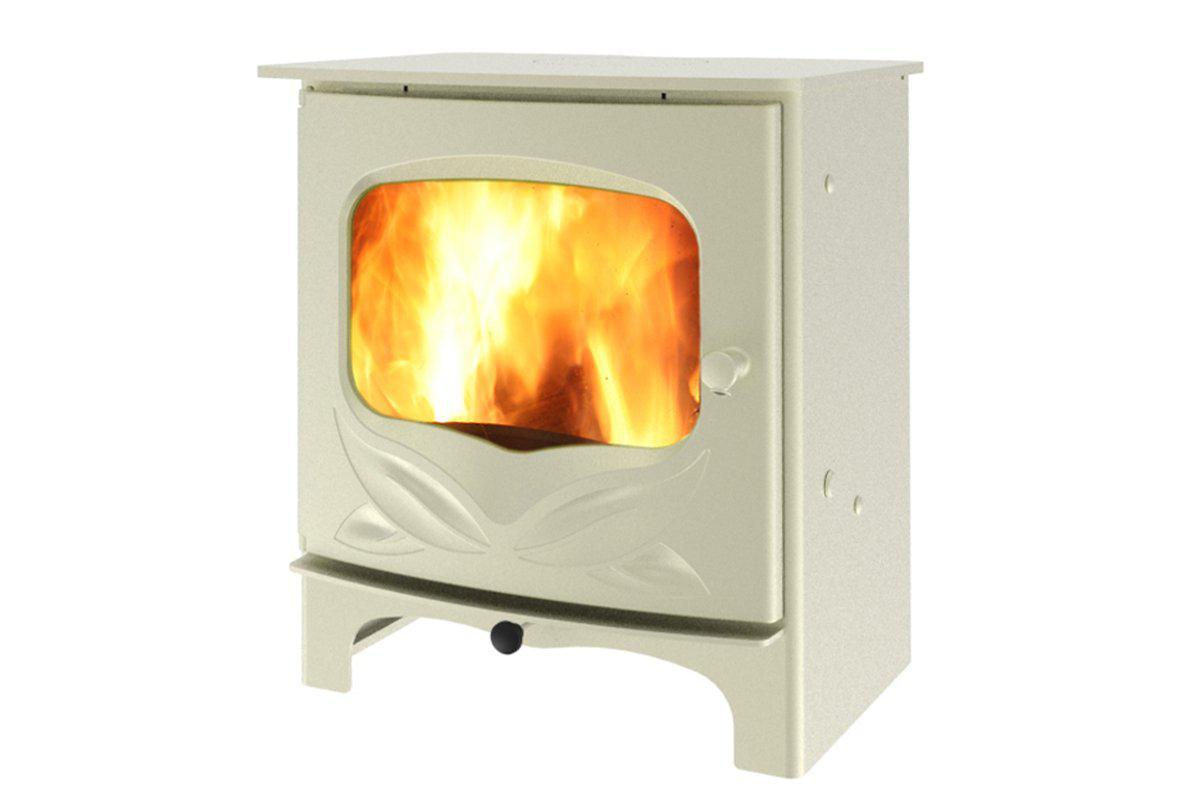

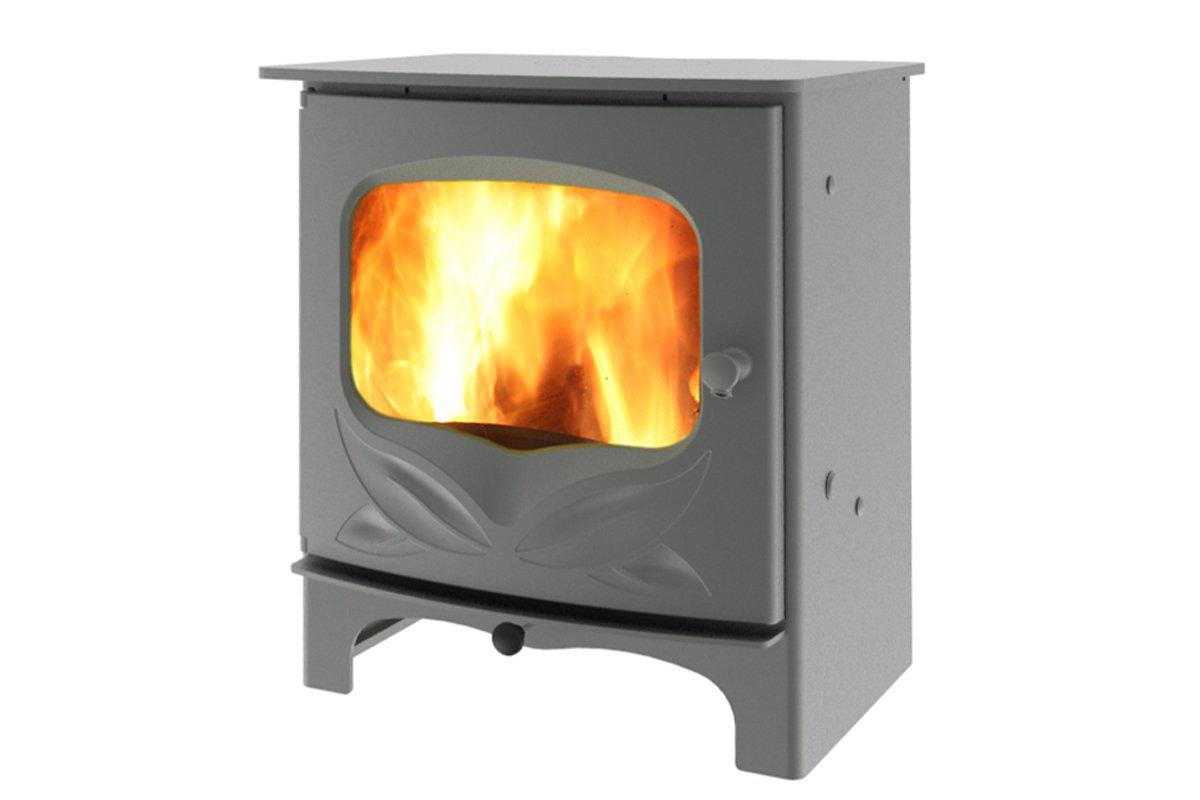

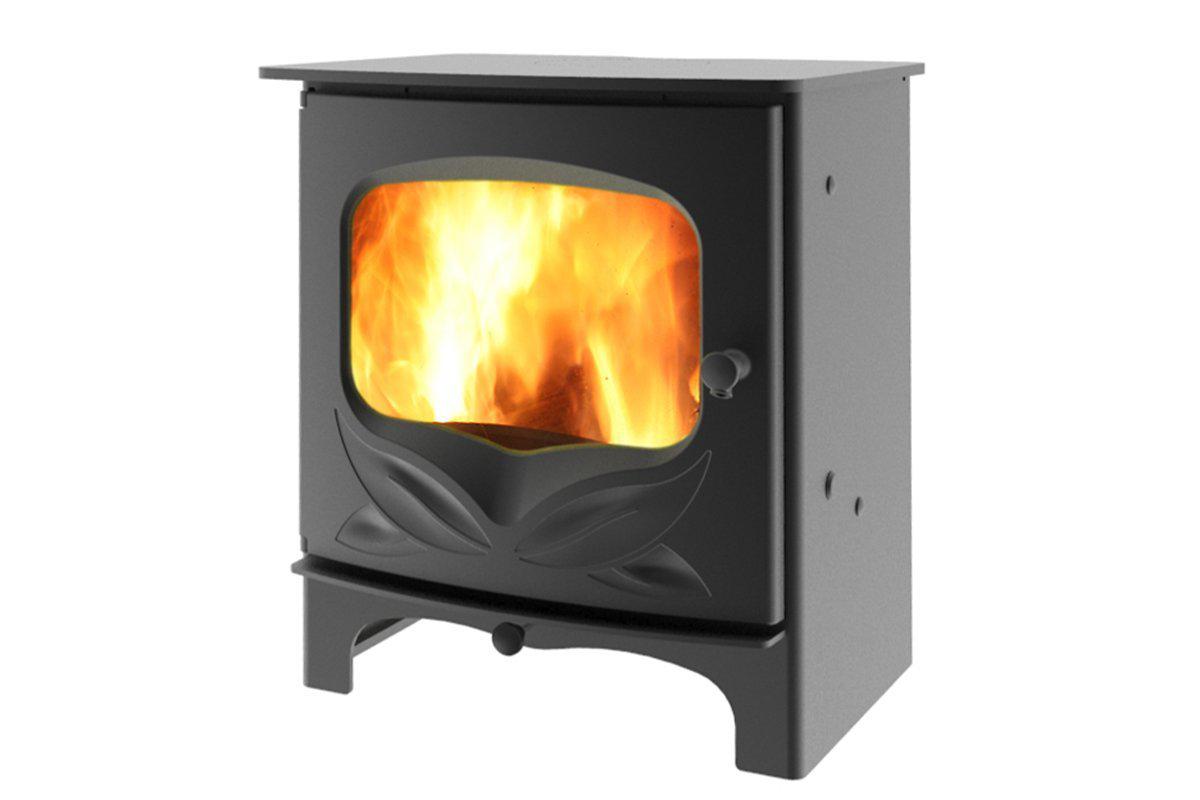

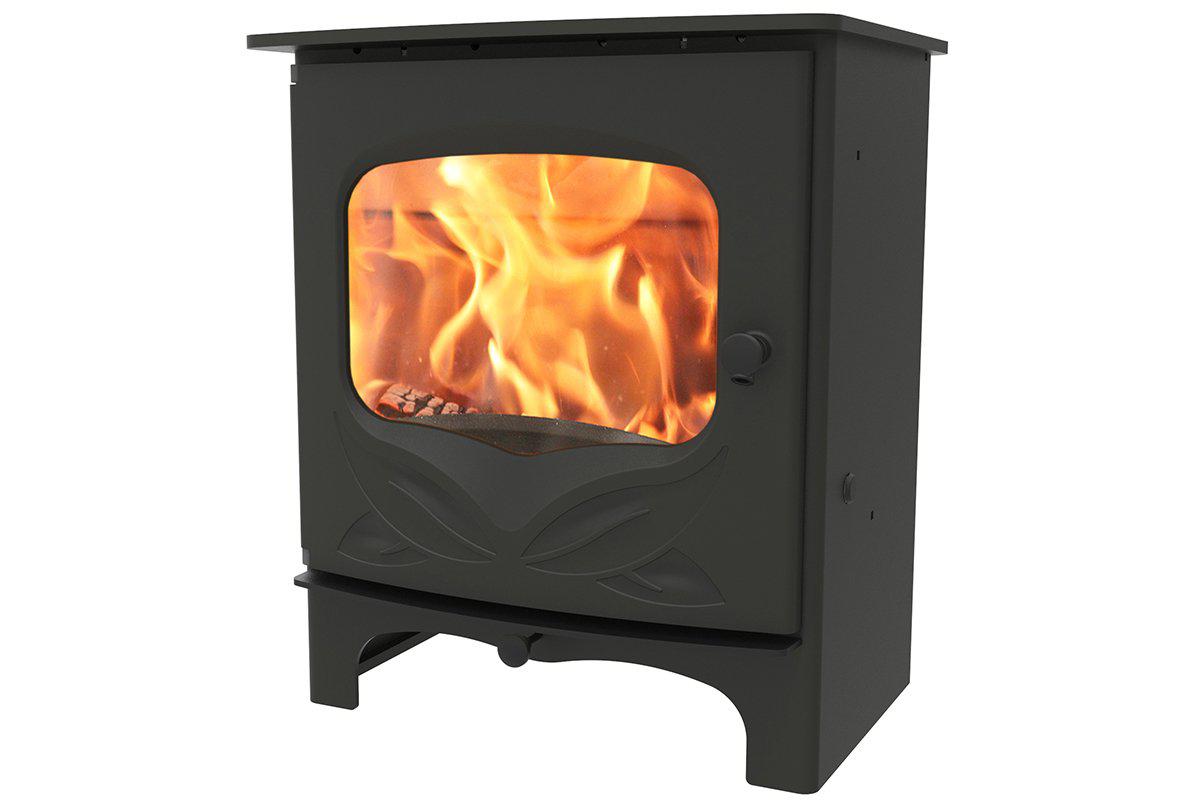

Charnwood Bembridge options include a rear heat shield which can reduce the safe distances to combustible materials to less than half (just 175mm). In addition there’s a space-saving rear flue adaptor which needs considerably less space than a T-piece or swept bend would when using the rear flue outlet. If this is your preferred installation method then Charnwood also have a cast iron Cooking Plate for the top of the stove which will allow you to rustle up some great recipes at the same time as you’re warming your home. The Bembridge can also be installed on a 12mm non-combustible decorative hearth and has an optional and convenient externally riddled drop-in fire grate with separate ash pan to reduce or remove the ash bed when it’s needed. The Bembridge comes in a standard traditional black finish or in tasteful French Grey, Soft Green, Gunmetal or the highly popular Almond.

YOUR CHOICE OF 3 DIFFERENT BEMBRIDGE BASES

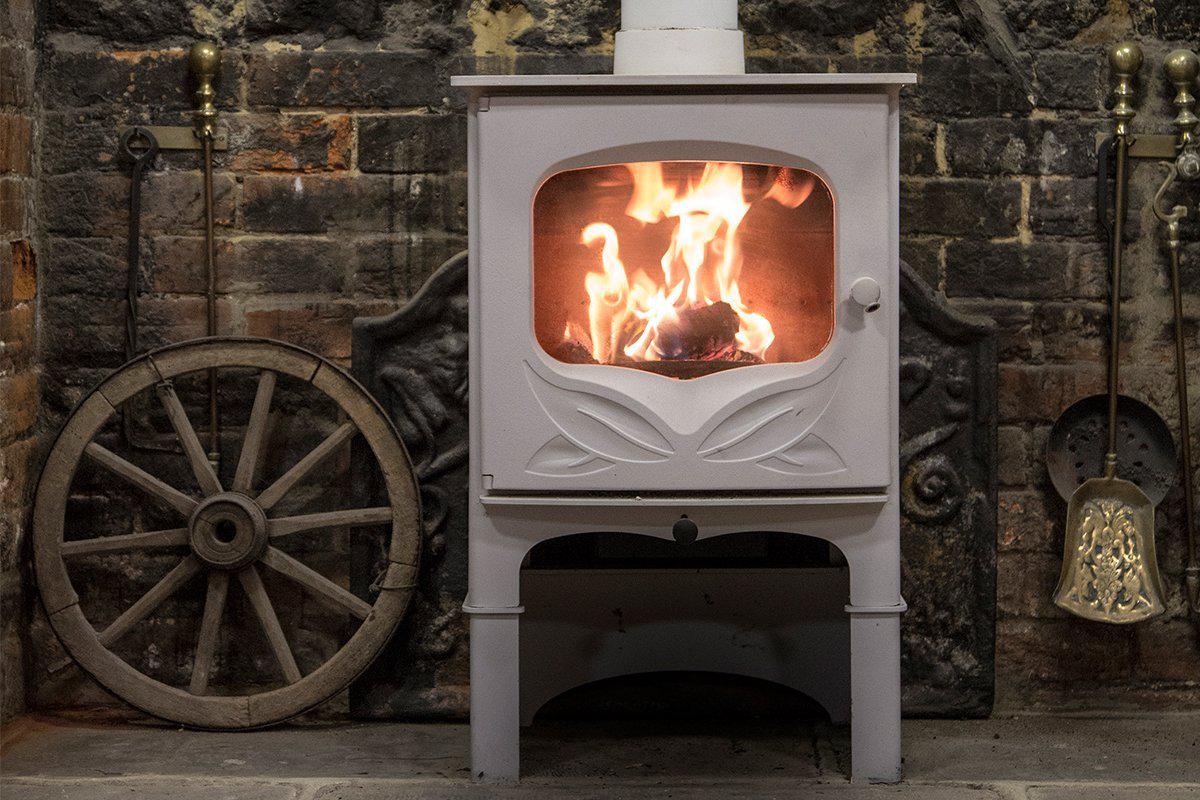

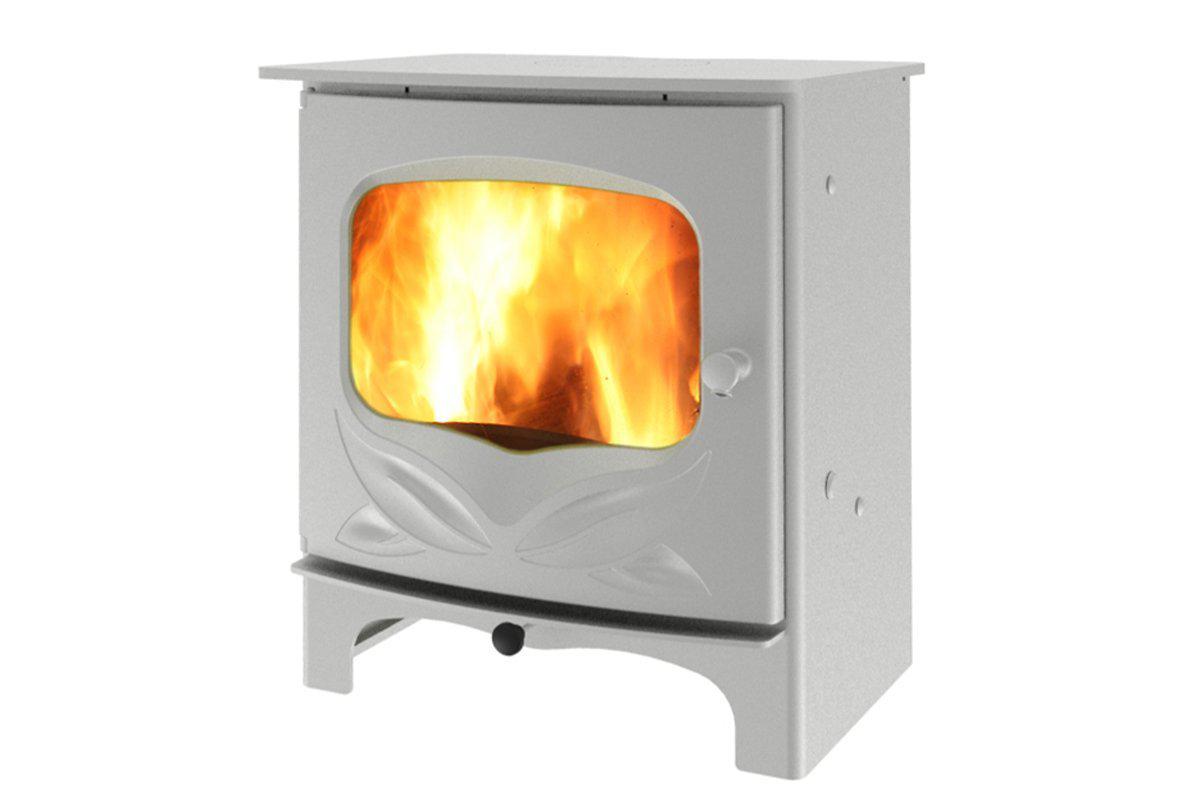

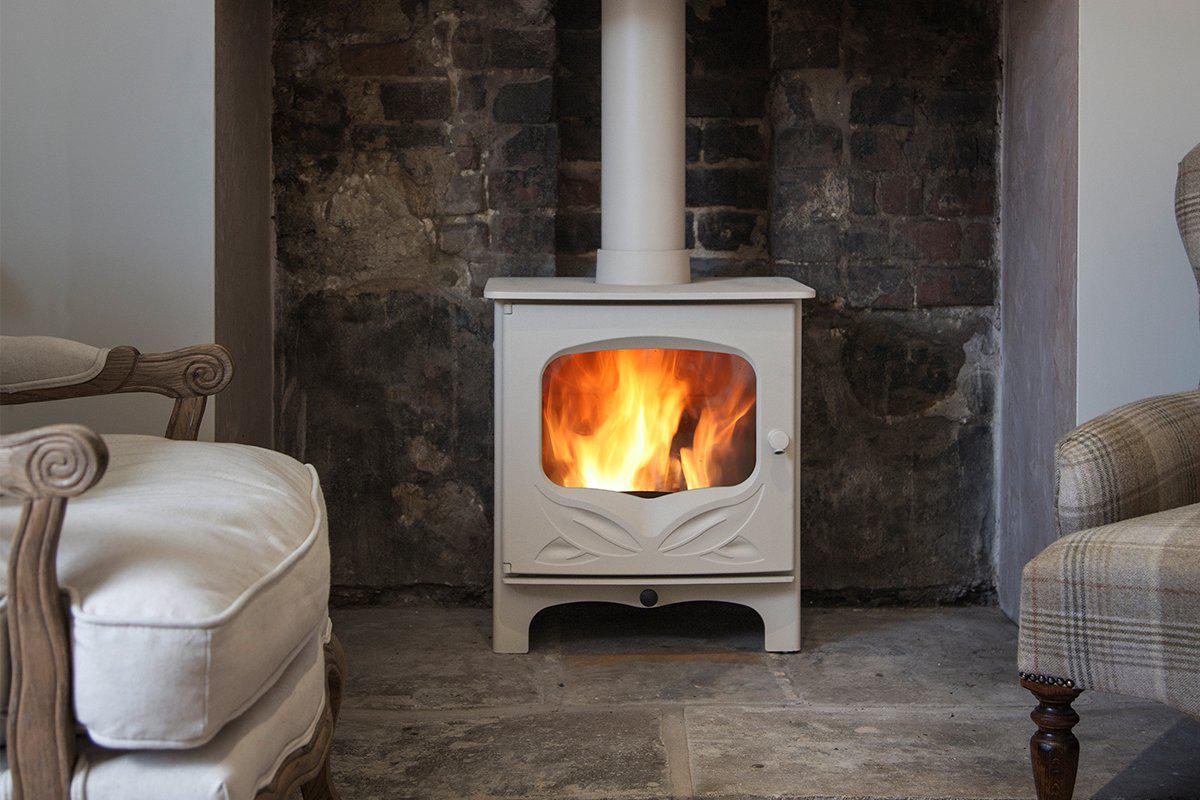

1 Low – elegant front cut out plinth: Overall height 560mm

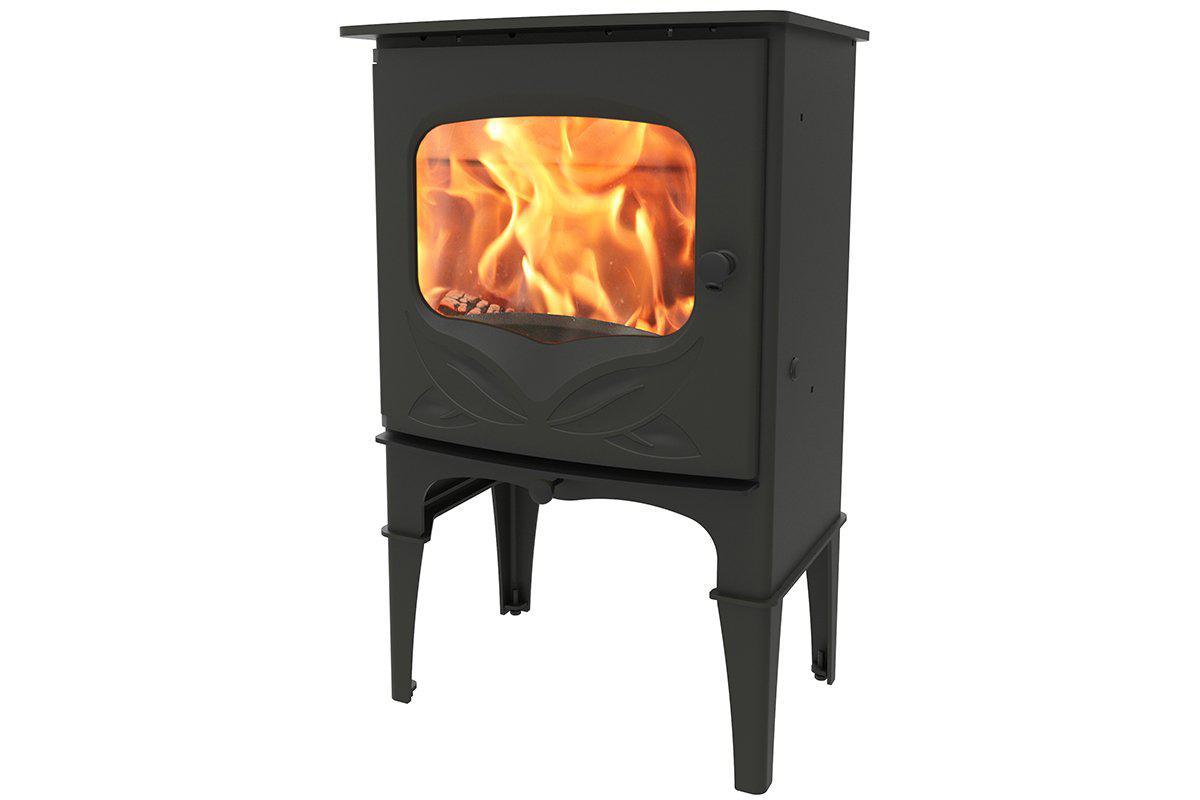

2 High Leg – graceful legs accentuate period look: Overall height 765mm

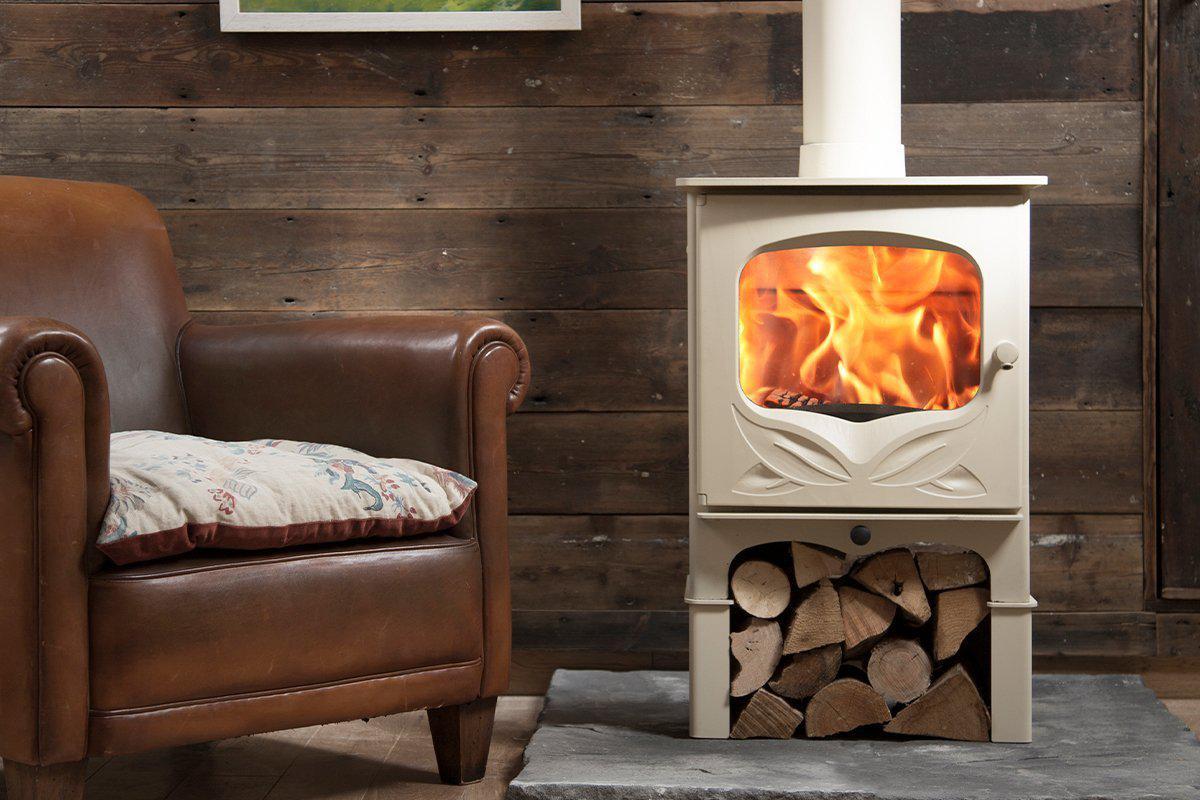

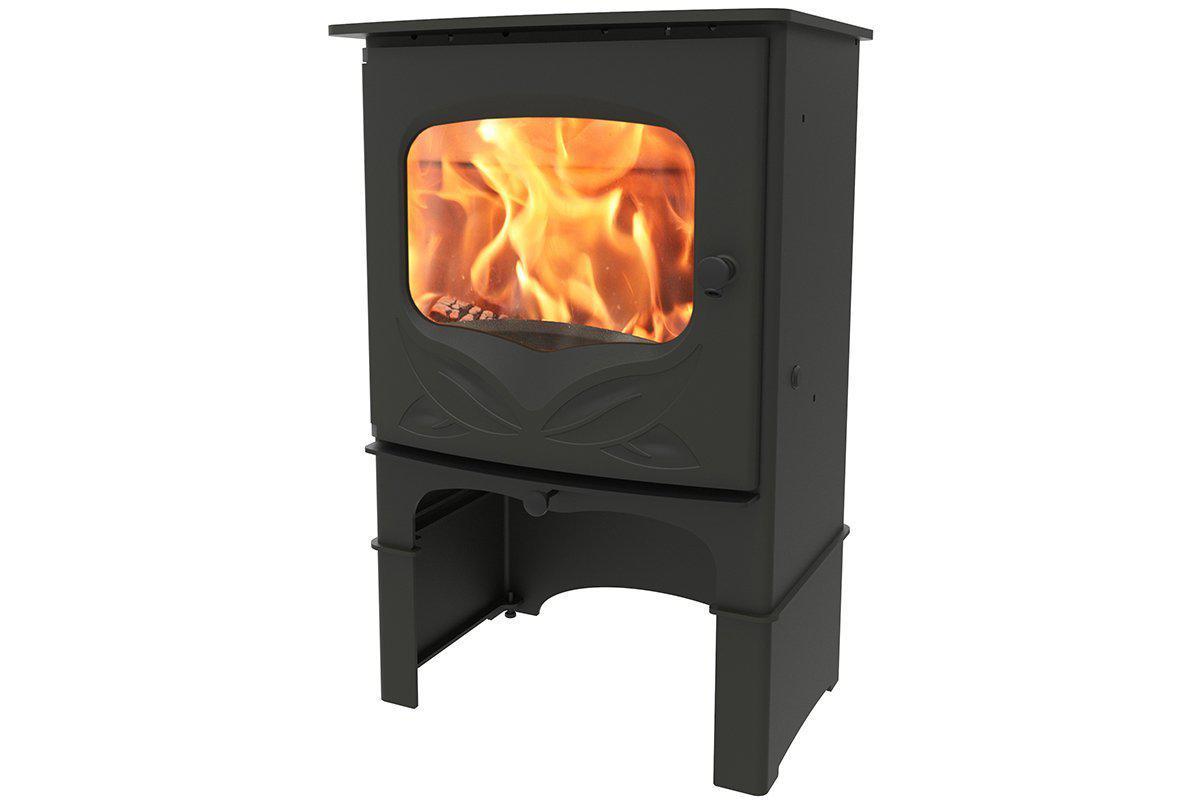

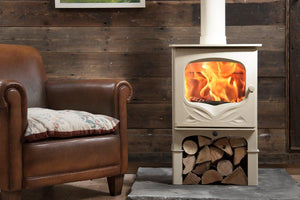

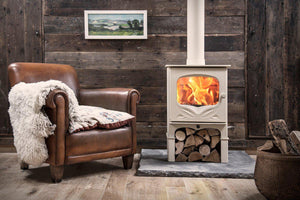

3 Store Stand – good sized storage area for logs: Overall height 745mm




      Technical



      CHARNWOOD BEMBRIDGE WOOD BURNING STOVE KEY FACTS


      Brand: Charnwood
      Model

      CHARNWOOD BEMBRIDGE WOOD BURNING STOVE

      Nominal Heat Output:    Up to 5.0kW
      Heat Output Range:

      2.0kW to 5.5kW depending on fuel load

      Efficiency (Net):

      82% Wood

      ErP Energy Rating A+
      Defra Smoke Exempt:

      Yes (no extra kit needed)

      ClearSkies
      Level 5 (Highest level)
      Fuel:   Seasoned wood logs only
      Airwash:   Yes
      Air Controls:

      Single push-pull Quattroflow air management system

      Construction:

      Cast iron doors and premium quality plate steel bodywork

      Flue Outlet:    Top or rear
      Flue Diameter 125mm / 5"
      Grate Type Flat bed with optional drop-in reciprocating grate available
      Guarantee:    10 Years
      Maximum Log Length 300mm (approx 12")
      Standard Colour

      Traditional Black

      Optional Finishes:

      Soft Green, French Grey, Gunmetal or Almond

      Options:   Three different base options:
      Low or High Leg, Store Stand
      Drop-in reciprocating grate for easy ash removal
      Rear Heat Shield (Reduces safe distance to 175mm)
      Space-saving sweep-through rear flue adaptor
      Cast iron cooking plate (for rear flue installations only)
      Net Weight:

      Low 80kg / High 83.5kg / Store 89kg

      Air vent required:    Not usually in pre-2008 homes. Alternatively use stove's direct external air supply as standard
      Suitable for 12mm Hearth:   Yes
      Direct Air Inlet (DEAS):  Direct external air supply capability 80mm dia' inlet kit option

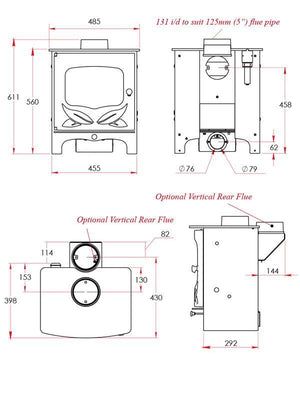

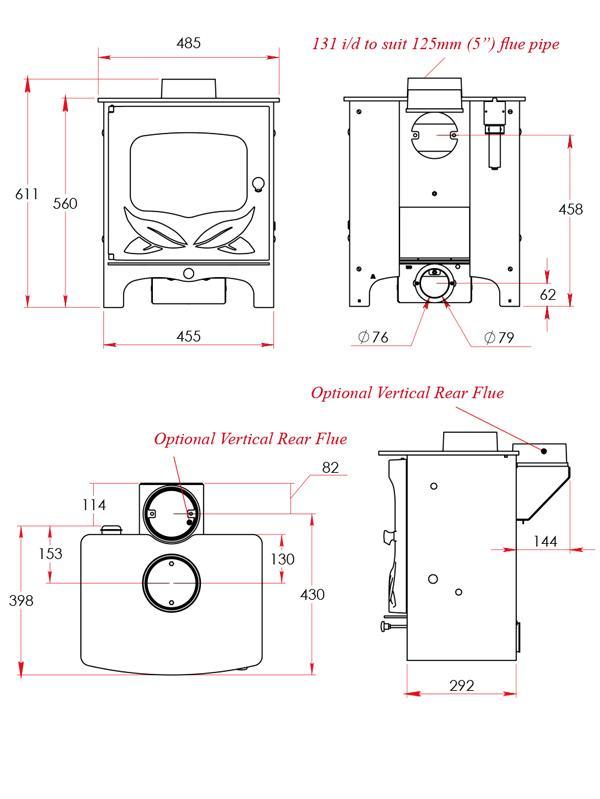

      Overall Dimensions:

      Low:  H560  W455  D292

      High Leg:  H765  W469  D292

      Store Stand:  H745  W455  D292

      Combustible Distances mm

      Sides 500  Rear 400 (175 with optional heat shield)
