Studio 500 Freestanding

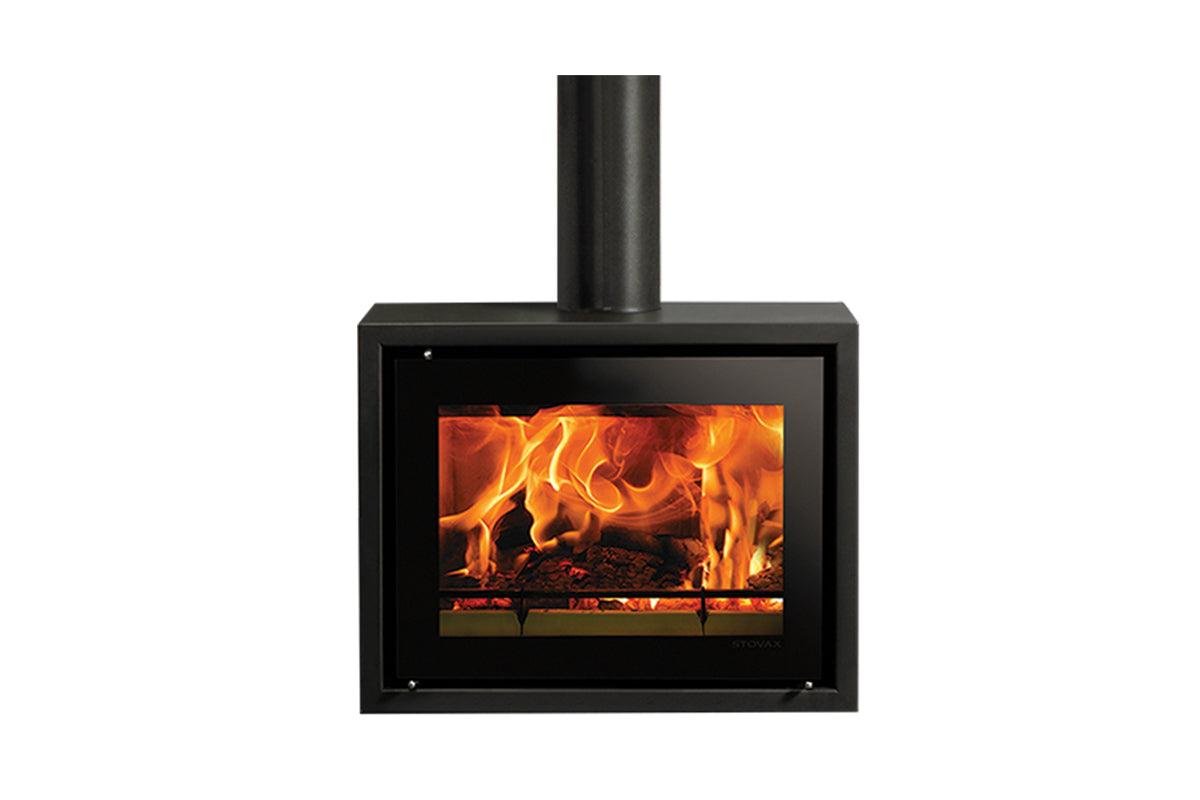

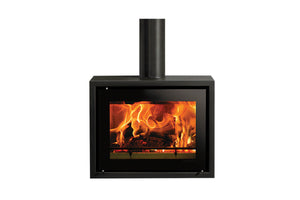

Studio 500 Freestanding Wood Burning Stove


The Stovax Studio 500 is a new addition to Stovax’s range of Studio Freestanding stoves, further extending and complementing the already impressive choice of Studio fires available. This high performing wood burning stove has a compact, yet innovative design, broadening the Studio’s versatility and suitability to a variety of homes.

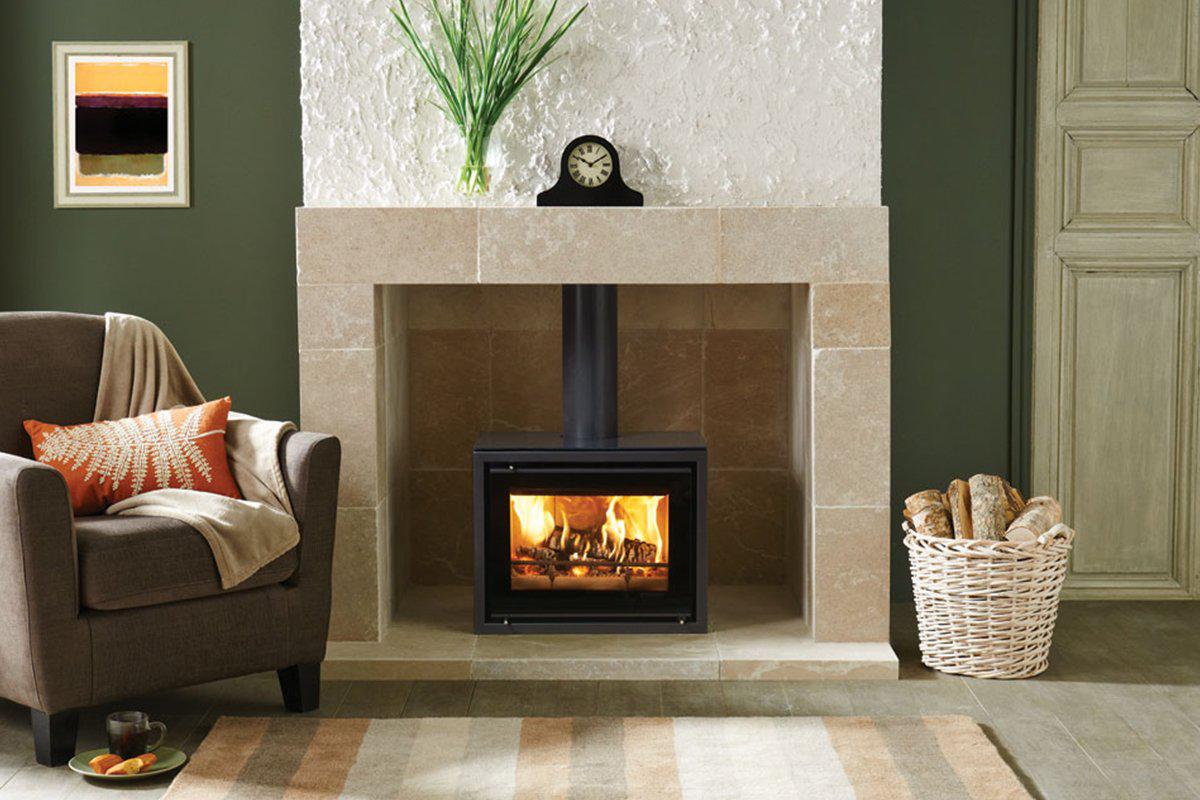

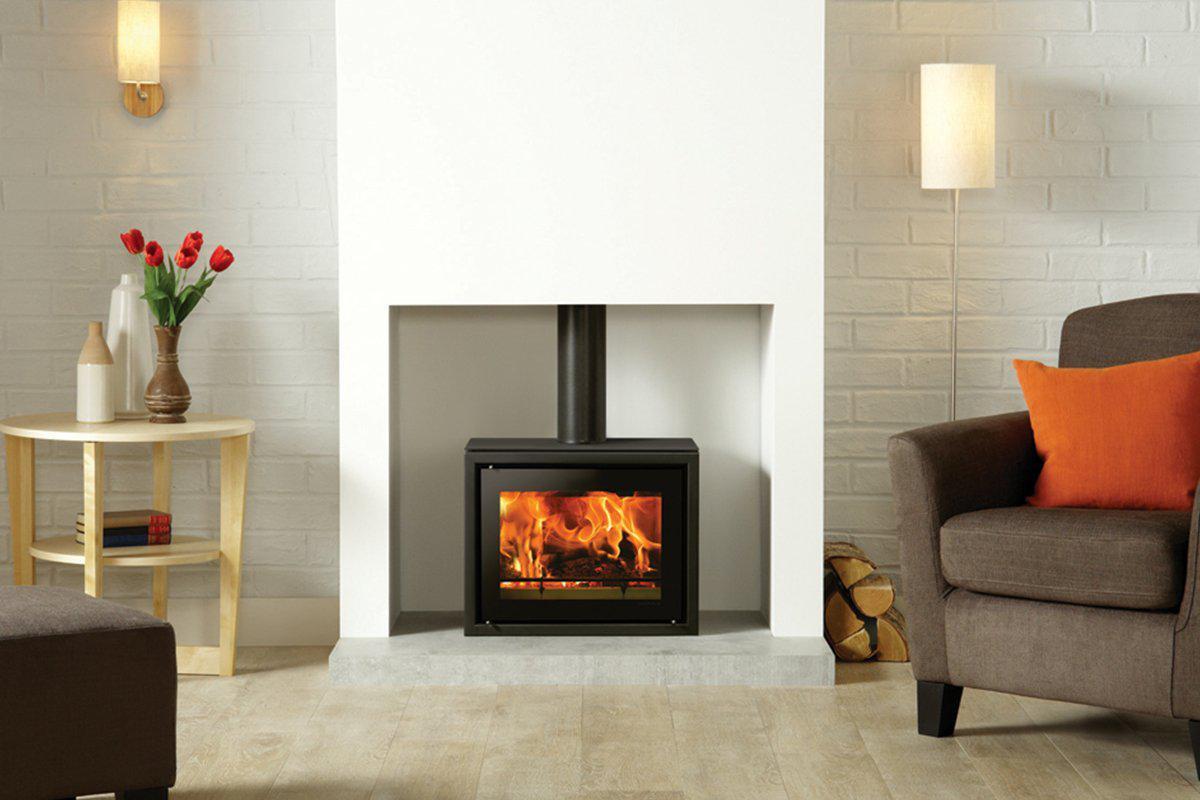

With a heat output to match that of the Studio 1 Freestanding stove, the Studio 500 Freestanding stove will provide ambiance and warmth to a cosy inglenook. It can also be teamed with a number of optional extras including the black glass top plate for a sleek and shining finish. The Studio 500 can also be placed on one of Stovax’s Freestanding Benches to create a real style statement.

Stovax has introduced a range of highly effective Heat Shields for the Studio Freestanding Wood Burning Range.




Key Facts
Brand Stovax
High efficiency up to 80%
Boost setting for lighting and re-fueling Yes
Removable steel and TCL baffles Yes
TCL firebox lining Yes
Radiant heat and convected heat Yes
Optional warm air ducting system Yes
Top flue connection Internal Ø - 153mm (6”)
Optional black glass top plate Yes
Optional Decorative black flue ring cover Yes
Decorative square section flue cover 15 x 1800 x 212mm (w x h x d )
Suitable for Smoke Control Areas* Yes
Optional Heat Shield kit** Yes
Stove bench compatible Yes

*When fitted with a Smoke Control Kit and used in accordance with the operating instructions.
**Available when fitted to a Riva Bench.


Studio 500 Freestanding Information

Width Height Depth Weight Nominal Heat
Output & Range
Maximum log length Energy Efficiency Class
607mm 479mm 382mm 85kg 5.0kW (1.7-7kW) 250mm (10”) A



Downloads

Brochure Download

    • https://cdn.shopify.com/s/files/1/0407/5408/6047/files/PM1485_STOCKTON_11_W.pdf?v=1616053904https://cdn.shopify.com/s/files/1/0407/5408/6047/files/PM1484_STOCKTON_11_SD_MF.pdf?v=1616053904Studio_Freestanding_Installation_User_InstructionsStudio_Freestanding_Installation_User_Instructions

    Benches

    Studio Freestanding Benches

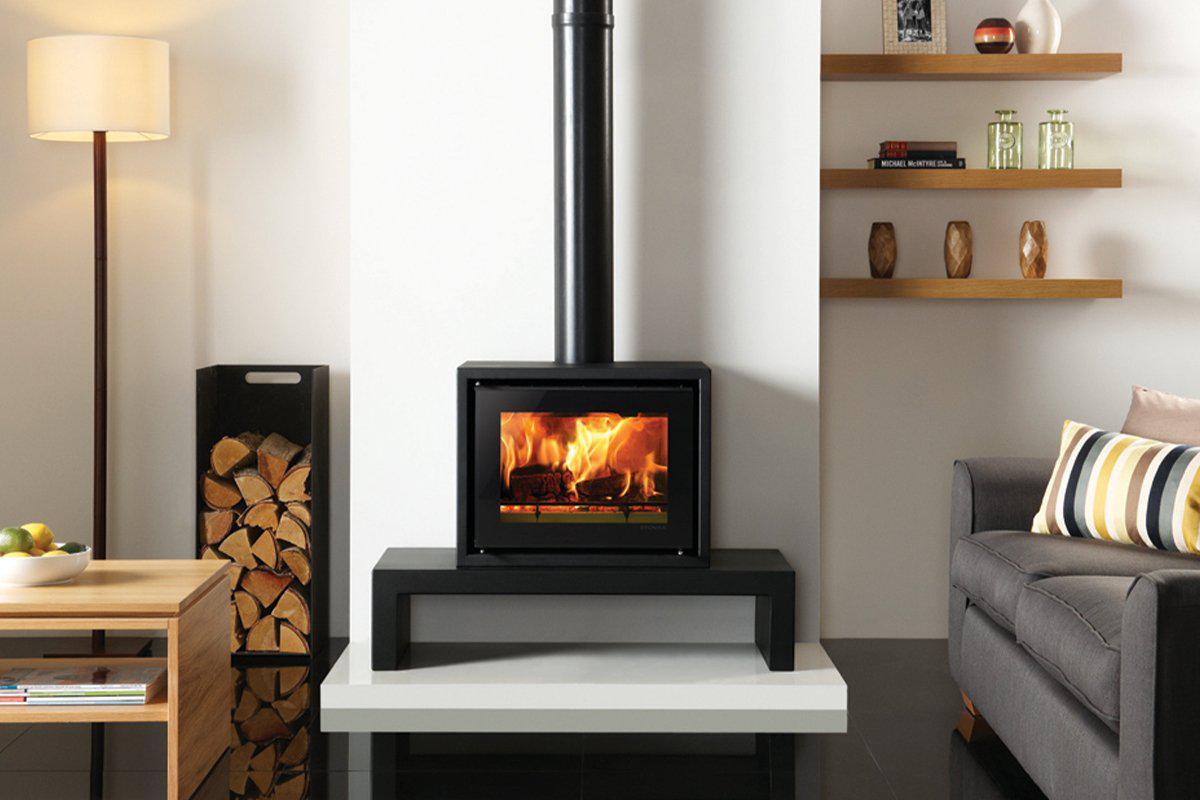

    For those who wish to raise a Stovax Studio Freestanding fire off a hearth, Stovax has eight stunning benches that are compatible with the Studio 500 Freestanding, 1, 2 & 3* fires. Offering infinitely greater design possibilities, these Studio benches have four widths and two heights to choose from so, you can be sure to satisfy your individual styling requirements.

    *Studio 3 Freestanding Fires may be mounted onto a 180 Bench only.

    Key Facts

    Brand Stovax
    Sturdy steel construction Yes
    Choice of 4 widths & 2 heights Yes
    Durable matching black finish Yes
    Proportioned 60mm wide legs Yes
    Allows for central or offset stove positioning Yes



    Studio Freestanding Benches Information

    Product Code Bench size Width Height Depth
    RVACB100BHT Bench 100 High 1000mm 350mm 420mm
    RVACLB100BHT Bench 100 Low 1000mm 250mm 420mm
    RVACB120BHT Bench 120 High 1200mm 350mm 420mm
    RVACLB120BHT Bench 120 Low 1200mm 250mm 420mm
    RVACB140BHT Bench 140 High 1400mm 350mm 420mm
    RVACLB140BHT Bench 140 Low 1400mm 250mm 420mm
    RVACB180BHT-DP Bench 180 High 1800mm 350mm 465mm
    RVACLB180BHT-DP Bench 180 Low 1800mm 250mm 465mm
    RVACLB120BHT Bench 120 Low, (Deep) 1200mm 250mm 500mm
    RVACB120BHT Bench 120 High (Deep) 1200mm 350mm 500mm
    RVACLB140BHT Bench 140 Low, (Deep) 1400mm 250mm 500mm
    RVACB140BHT Bench 140 High, (Deep) 1400mm 350mm 500mm

    * Studio 3 Freestanding fires may be mounted onto a 180 Bench only.
