HWAM 40/55m


HWAM 40/55
Design by Sørig & Jacobsen

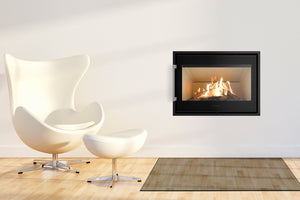

Simple elegance, clean lines and a minimalist design characterise our new insert, HWAM I 40/55. The wide glass offers a spectacular view of the dancing flames and plays a prominent role by virtue of the simple design.

This model is available with a classic cast iron door or a modern glass door, and you can choose between a right hinged or a left hinged door. HWAM I 40/55 has been designed to allow for very easy servicing. The wide combustion chamber is mounted on a rotary arm, which means that the stove can easily be swivel-led into the room to allow easy access to all its parts. When you buy a HWAM I 40/55 insert, you have the option of buying various types of customised frames. A frame without bent edges is both stylish and eye-catching.


Technical data
Energy efficiency class HWAM®Autopilot™ A
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 4-8kW
AutomaticTM nominal heat output (kW) 6,4
IHSTM nominal heat output (kW) 6,0
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 11 / 12
Combustion chamber width (cm) 62,7
Height (cm)
Width (cm) 73,4
Depth (cm) 39,1
Weight (kg) 97
Combustion air system
Combustion air system can be mounted, floor and rear (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable floor (cm) 35
Distance to furnishings in front (cm) 120
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, Autopilot™/SmartControl™ (%)
EN 13229 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes
DIBt Test Yes
DEFRA Exempt Yes






All drawings: The measurements for the flue outlet and fresh air connection are to the centre of the hole.
