AN INTEGRATED PART OF YOUR HOME

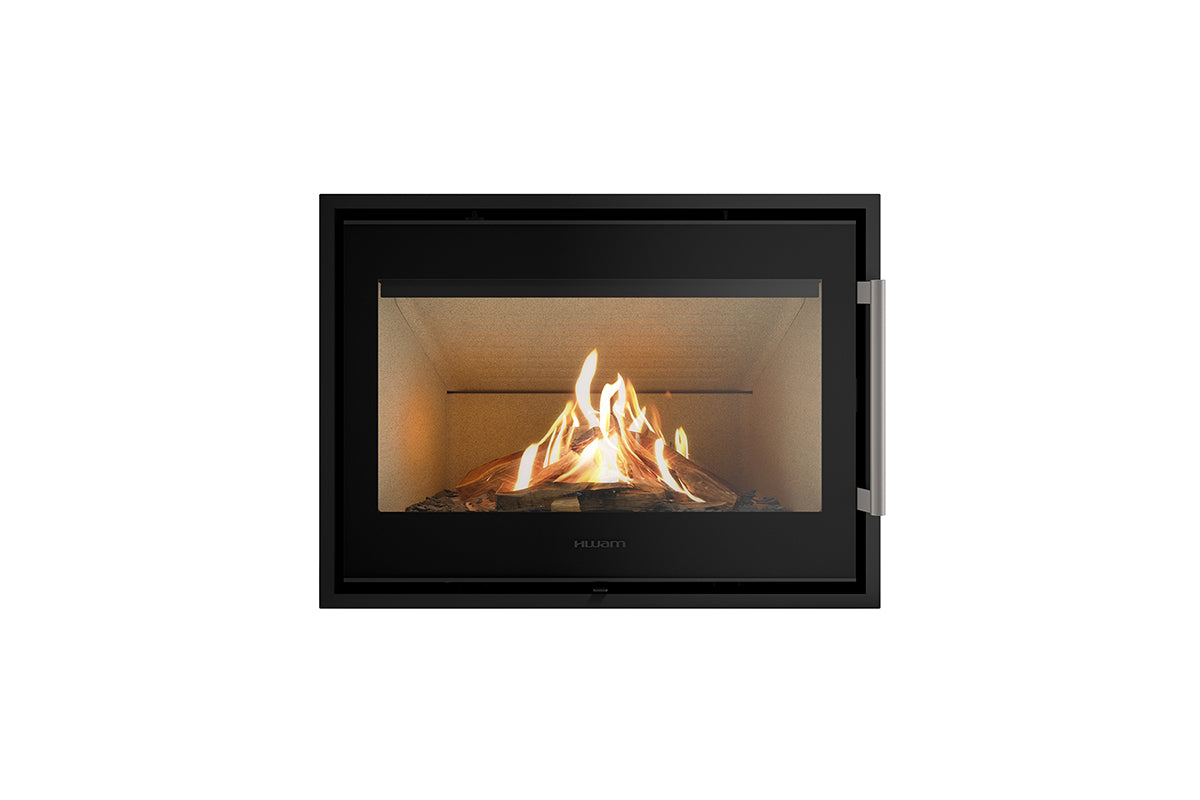

HWAM 40/55
Design by Sørig & Jacobsen
Simple elegance, clean lines and a minimalist design characterise our new insert, HWAM I 40/55. The wide glass offers a spectacular view of the dancing flames and plays a prominent role by virtue of the simple design.

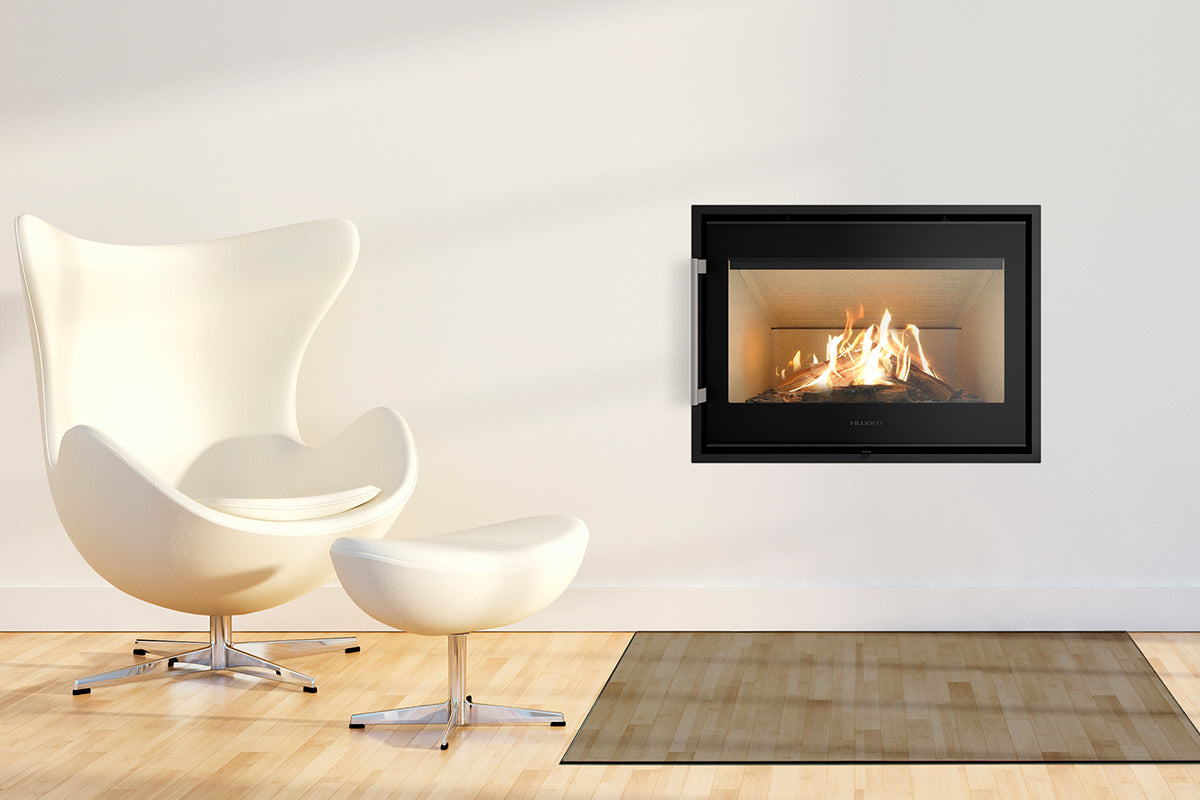

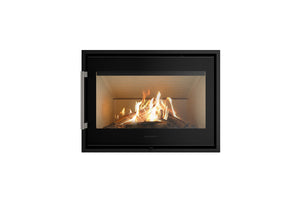

This model is available with a classic cast iron door or a modern glass door, and you can choose between a right hinged or a left hinged door. HWAM I 40/55 has been designed to allow for very easy servicing. The wide combustion chamber is mounted on a rotary arm, which means that the stove can easily be swivel-led into the room to allow easy access to all its parts. When you buy a HWAM I 40/55 insert, you have the option of buying various types of customised frames. A frame without bent edges is both stylish and eye-catching.
| Technical data | |
| Energy efficiency class HWAM®Autopilot™ | A |
| HWAM®SmartControl™ | A+ |
| HWAM® Autopilot™ | Yes |
| HWAM® Smartcontrol™ | Yes |
| Capacity (kW) | 4-8kW |
| AutomaticTM nominal heat output (kW) | 6,4 |
| IHSTM nominal heat output (kW) | 6,0 |
| Smokeoutlet, Ø (mm) | 150 |
| Chimney draught, recommended (Pa) | 11 / 12 |
| Combustion chamber width (cm) | 62,7 |
| Height (cm) |
53,5 |
| Width (cm) | 73,4 |
| Depth (cm) | 39,1 |
| Weight | |
| Weight (kg) | 97 |
| Combustion air system | |
| Combustion air system can be mounted, floor and rear (Ø 100 mm) | Yes |
| Distance to inflammable materials | |
| Distance to inflammable floor (cm) | 35 |
| Distance to furnishings in front (cm) | 120 |
| Efficiency, HWAM®Autopilot™/HWAM® SmartControl™ | |
|
Efficiency, Autopilot™/SmartControl™ (%)
|
80/83 |
| Approvals | |
| EN 13229 (Europa) | Yes |
| Art. 15a (Austria) | Yes |
| NS 3058 (Norway) | Yes |
| The stove announcement (Denmark) | Yes |
| LRV (Switzerland) | Yes |
| RLU zugelassen (Germany) | Yes |
| BImSchV Stufe 2 (Germany) | Yes |
| Exempt under the Clean Air Act (UK) | Yes |
| HETAS registrated (UK) | Yes |
| DIBt Test | Yes |
| DEFRA Exempt | Yes |
All drawings: The measurements for the flue outlet and fresh air connection are to the centre of the hole.
