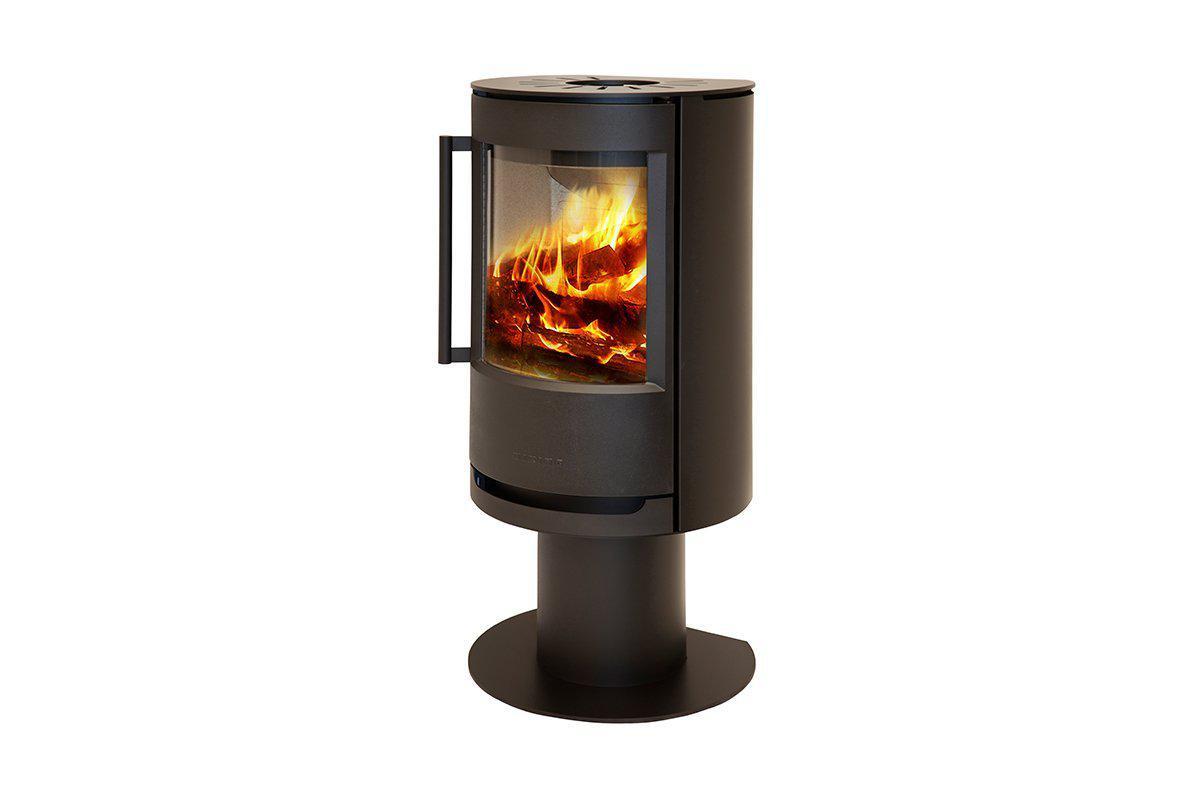

WIKING Luma 2 on a pedestal

WIKING Luma 1 and 2 are the shortest stoves in the WIKING Luma series. But this does not prevent the firewood from being fully utilised, to the benefit of the user and the environment. Both models have a large stove glass pane set in a solid cast-iron door, and WIKING Luma 1 also has wide side glasses, som you can enjoy the view of crackling flames from all angles.



WIKING Luma 1 and 2 have a simple and timeless design and both stoves may be installed directly on the floor and are also available with a pedestal or a wall mounting bracket.

Technical
Energy efficiency class WIKING®Automatic™

Operating range
4-9 kW
Nominal output
7 kW
Net efficiency
81 %
Flue outlet
Ø 150 mm
Combustion chamber width
36,5 cm
Chimney draught, min
12 Pa
Connection from floor to topoutlet, pedestal
108,2 cm
Distance to combustible material

Rear/side
15/40 cm
Distance from furniture, front
110 cm
If placed in corner, 45º
7,5 cm
Weight

Weight
114 kg
Weight, pedestal
19 kg
Approvals
  • EN 13240 (Europe)
  • NS 3058/3059 (Norway)
  • Art. 15a (Austria)
  • RLU/DIBt (Germany)
  • DEFRA (England)
  • HETAS (England)
Options
  • Smoke outlet: top or back
  • Colour: black
  • Combustion air system is available
