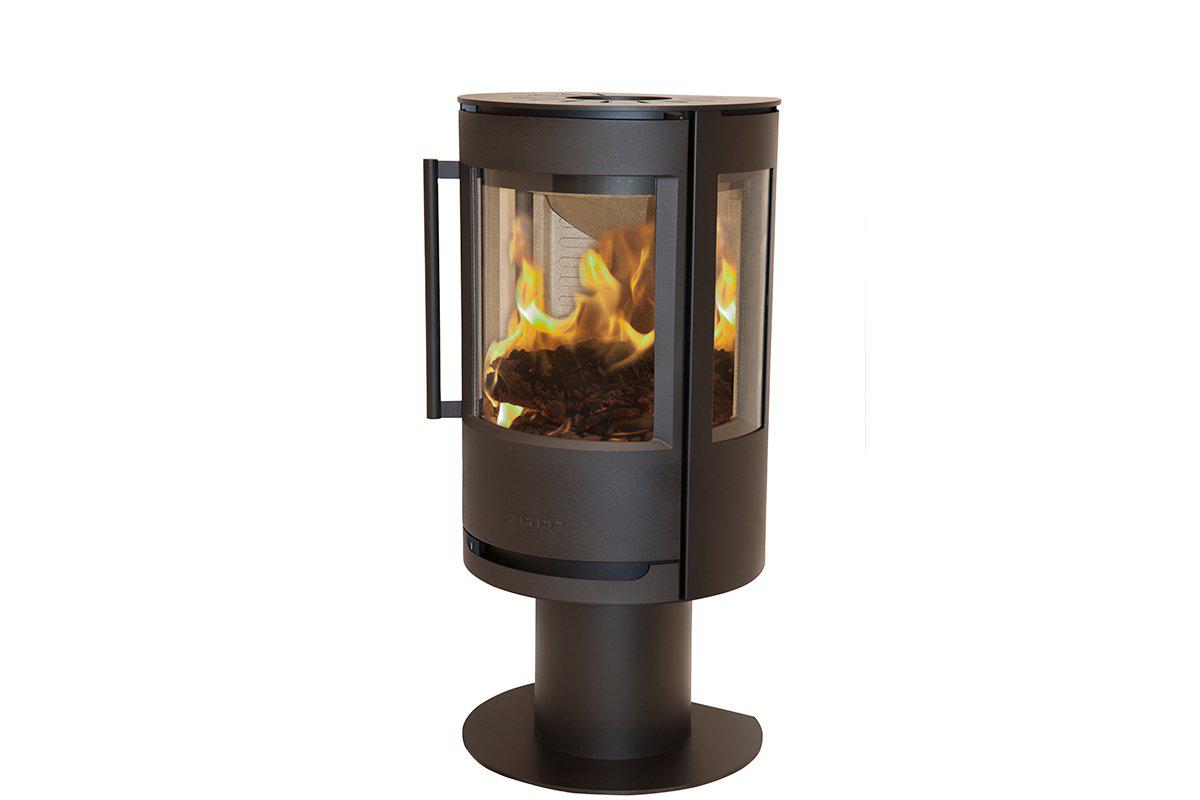

WIKING Luma 1 on a pedestal

WIKING Luma 1 and 2 are the lowest wall-mounted stoves in the WIKING Luma series. But this does not prevent the firewood from being fully utilised, to the benefit of the user and the environment. Both models have a large stove glass set in a solid castiron door, and Luma 1 also has wide side windows, so you can enjoy the view of crackling flames from all angles. Both WIKING Luma stoves are also available with a pedestal, so they can be installed on the floor.

WIKING Luma 1 and WIKING Luma 2 have a simple and timeles design and are perfect for the cosy nook in your holiday house, or as a gathering point in your lounge room at home.

Technical
Energy efficiency class WIKING®Automatic™

Operating range
4-9 kW
Nominal output
7 kW
Net efficiency
81 %
Flue outlet
Ø 150 mm
Combustion chamber width
36,5 cm
Chimney draught, min
12 Pa
Connection from floor to topoutlet, pedestal
108,2 cm
Distance to combustible material

Rear/side
12,5/60 cm
Distance from furniture, front
105 cm
If placed in corner, 45º
31,5 cm
Weight

Weight
117 kg
Weight, pedestal
19 kg
Approvals
  • EN 13240 (Europe)
  • NS 3058/3059 (Norway)
  • Art. 15a (Austria)
  • RLU/DIBt (Germany)
  • DEFRA (England)
  • HETAS (England)
Options
  • Smoke outlet: top or back
  • Colour: black
  • Combustion air system is available
