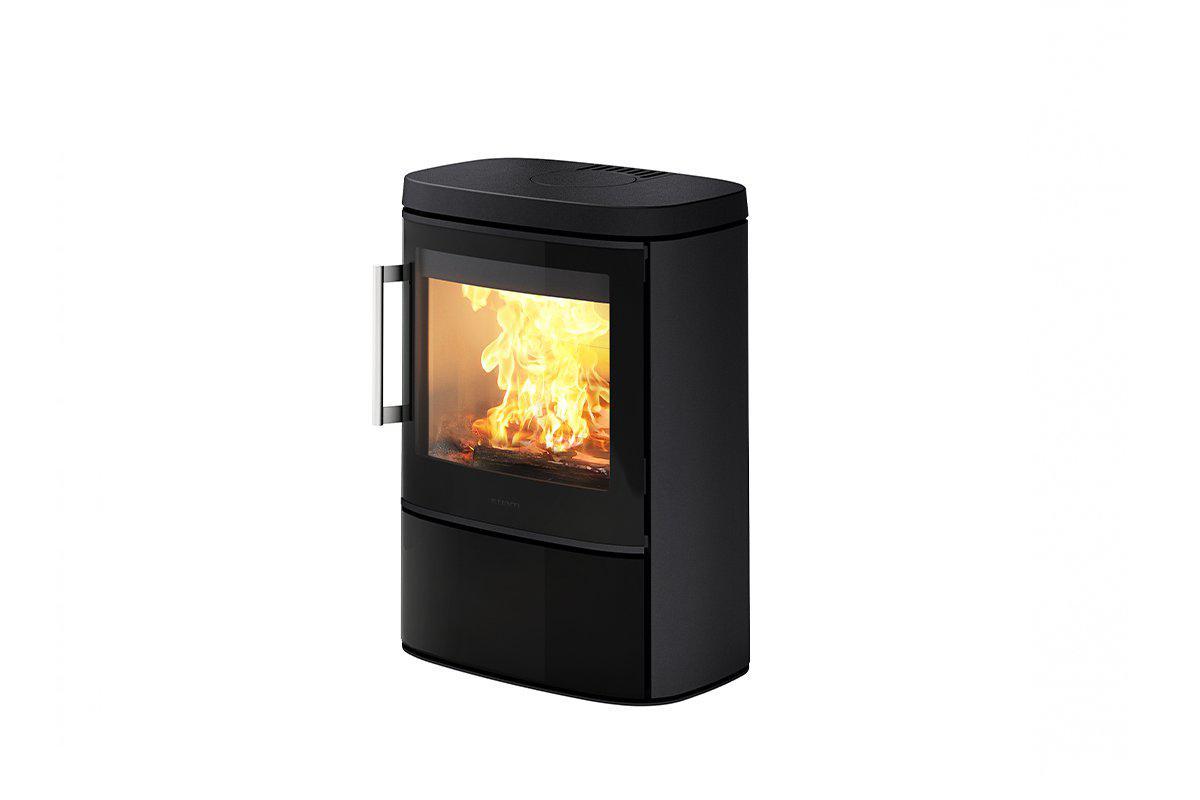

A wood-burning stove that combines good quality with the future trends of interior design
Do you want a discrete stove capable of heating up your home and creating a good atmosphere? Then this stove may appeal to you, as it is the smallest model in the HWAM 4600 series, which is characterised by its extra wide glass section which broadens the view of the dancing flames.
Options:
HWAM 4620m (modern door) - Available in white, grey or black steel
HWAM 4620c (classic door) - Available in grey or black steel
HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.
| Technical data | |
| Energy efficiency class HWAM®Autopilot™ | A+ |
| HWAM®SmartControl™ | A+ |
| HWAM® Autopilot™ | Yes |
| HWAM® Smartcontrol™ | Yes |
| Capacity (kW) | 3-9kW |
| AutomaticTM nominal heat output (kW) | 7,0 |
| IHSTM nominal heat output (kW) | 8,0 |
| Smokeoutlet, Ø (mm) | 150 |
| Chimney draught, recommended (Pa) | 12 |
| Combustion chamber width (cm) | 49 |
| Height (cm) Stove body | 84,8 |
| Width (cm) | 63,0 |
| Depth (cm) | 40,6 |
| Weight | |
| Weight (kg) | 119 |
| Combustion air system | |
| Combustion air system can be mounted, back (Ø 100 mm) | Yes |
| Combustion air system can be mounted, floor (Ø 100 mm) | Yes |
| Distance to inflammable materials | |
| Distance to inflammable materials, back (cm) | 20 |
| Distance to inflammable materials, side(cm) | 35 |
| Distance to inflammable materials, front(cm) | 75 |
| Distance to inflammable materials, corner location (cm) | 12-41 |
| All dimensions in connection with corner installation are only recommendations. | |
| Distance to furnishing in front (cm) | 130 |
| Efficiency, HWAM®Autopilot™/HWAM® SmartControl™ | |
| Efficiency, gross/net (%) | 80/81 |
| Approvals | |
| EN 13240 (Europa) | Yes |
| Art. 15a (Austria) | Yes |
| NS 3058/3059 (Norway) | Yes |
| The stove announcement (Denmark) | Yes |
| LRV (Switzerland) | Yes |
| RLU zugelassen (Germany) | Yes |
| BImSchV Stufe 2 (Germany) | Yes |
| Exempt under the Clean Air Act (UK) | Yes |
| HETAS registrated (UK) | Yes |
