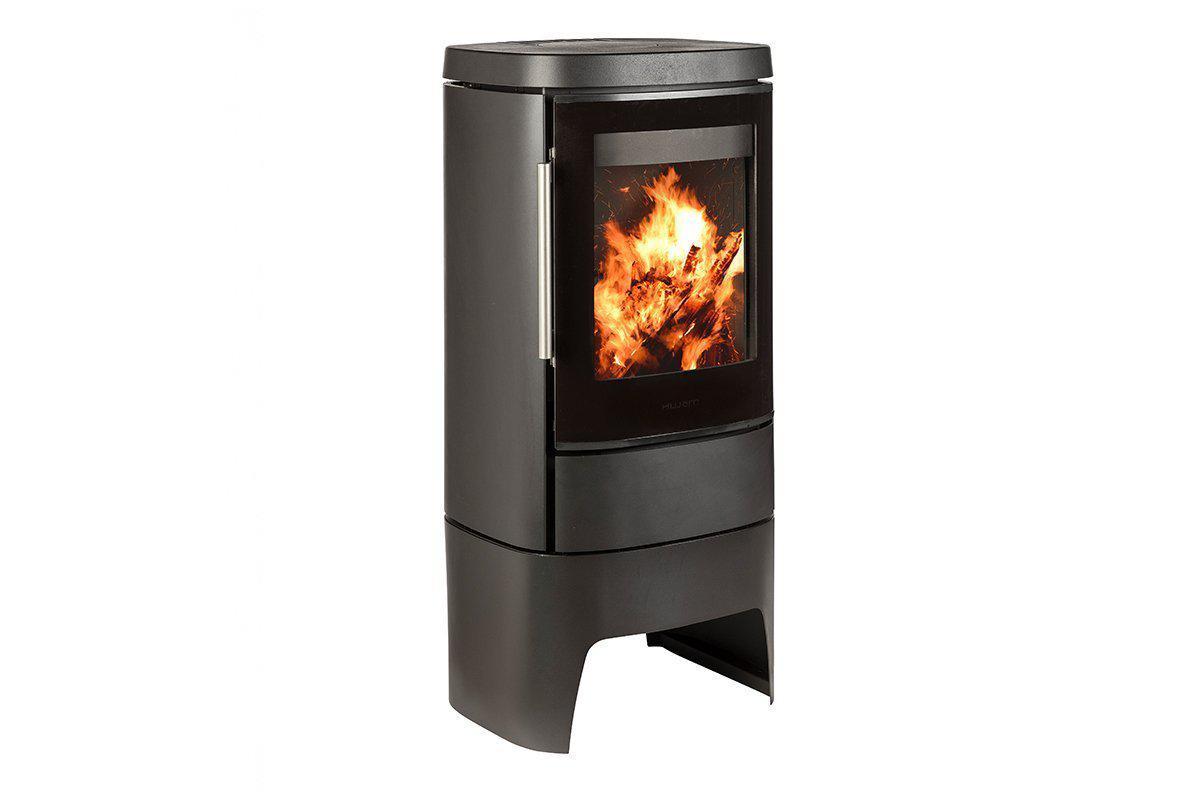

HWAM 4520M WITH BASE

A beautiful stove that both wall mounted and on a plinth, completes the interior design of every home

Options:
HWAM 4520 - Available with a low base, high base, plinth or as wall mounted
HWAM 4520m (modern door) - Available in white, grey or black steel
HWAM 4520c (classic door) - Available in grey or black steel

Technical
Technical data
Energy efficiency class HWAM®Autopilot™ A+
HWAM®SmartControl™ A+
HWAM® Autopilot™ Yes
HWAM® Smartcontrol™ Yes
Capacity (kW) 3-7kW
AutomaticTM nominal heat output (kW) 4,9
IHSTM nominal heat output (kW) 4,9
Smokeoutlet, Ø (mm) 150
Chimney draught, recommended (Pa) 12
Combustion chamber width (cm) 35,8
Height (cm) Stove body 75,5
Width (cm) 50,0
Depth (cm) 40,6
Weight
Weight (kg) 101
Combustion air system
Combustion air system can be mounted, back (Ø 100 mm) Yes
Combustion air system can be mounted, floor (Ø 100 mm) Yes
Distance to inflammable materials
Distance to inflammable materials, back (cm) 10
Distance to inflammable materials, side(cm) 59
Distance to inflammable materials, front(cm) 120
Distance to inflammable materials, corner location (cm)
All dimensions in connection with corner installation are only recommendations.
Distance to furnishing in front (cm) 120
Efficiency, HWAM®Autopilot™/HWAM® SmartControl™
Efficiency, gross/net (%) 81,6
Approvals
EN 13240 (Europa) Yes
Art. 15a (Austria) Yes
NS 3058/3059 (Norway) Yes
The stove announcement (Denmark) Yes
LRV (Switzerland) Yes
RLU zugelassen (Germany) Yes
BImSchV Stufe 2 (Germany) Yes
Exempt under the Clean Air Act (UK) Yes
HETAS registrated (UK) Yes



Drawings



Downloads

 Hwam Brochure UK

User's manual for the HWAM 4500 series (EN)

User's manual for the HWAM 4500 series with HWAM® SmartControl™ (EN)

User Manual HWAM® SmartControl™ Generation 2 (EN)

Assembly instructions for combustion air system bottom (HWAM 4510 & 4520)

Assembly instructions for combustion air system back (HWAM 4510 & 4520)

Assembly instructions for combustion air system (HWAM 4530, 4540, 4550 & 4560)

Assembly instructions for combustion air system for stoves with HWAM® SmartControl™ (HWAM 4510 and 4520)

Assembly instructions for combustion air system for stoves with HWAM® SmartControl™ (HWAM 4530, 4540, 4550 and 4560)

Mounting the stove on a wall (HWAM 4510 & 4520)

Mounting the heat storage (HWAM 4550 & 4560)

Mounting adjustable feet

Mounting the low base

Assembly instructions for Airbox and band

Quickguide - HWAM® SmartControl™ (EN)
