Fondis Ulys 900

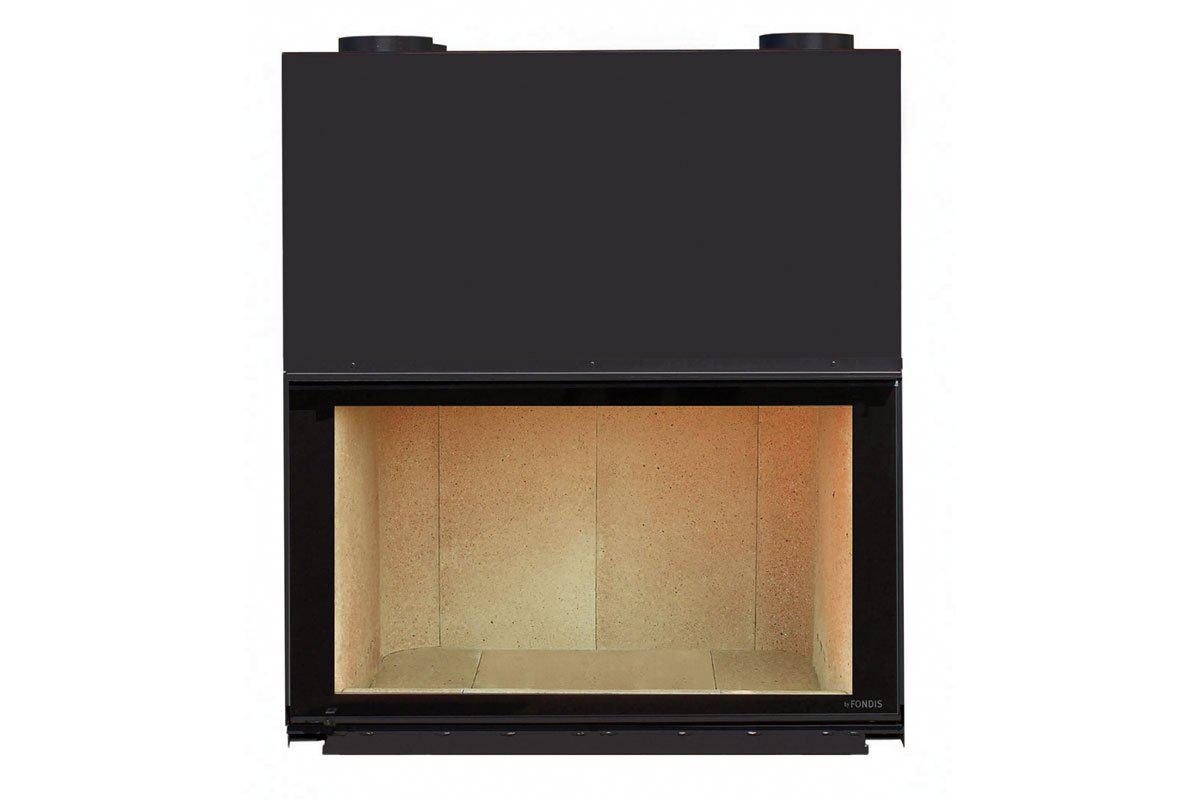

Fondis Ulys 900 Wood Burning Inset Stove

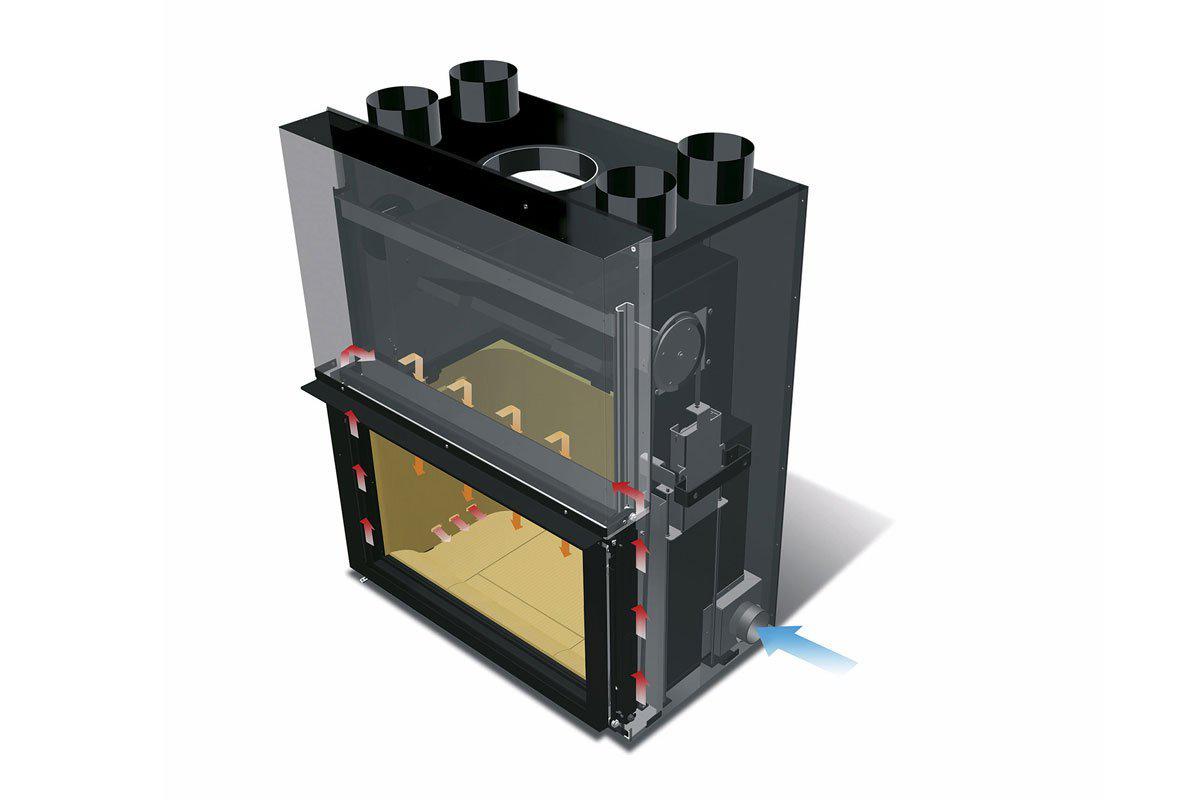

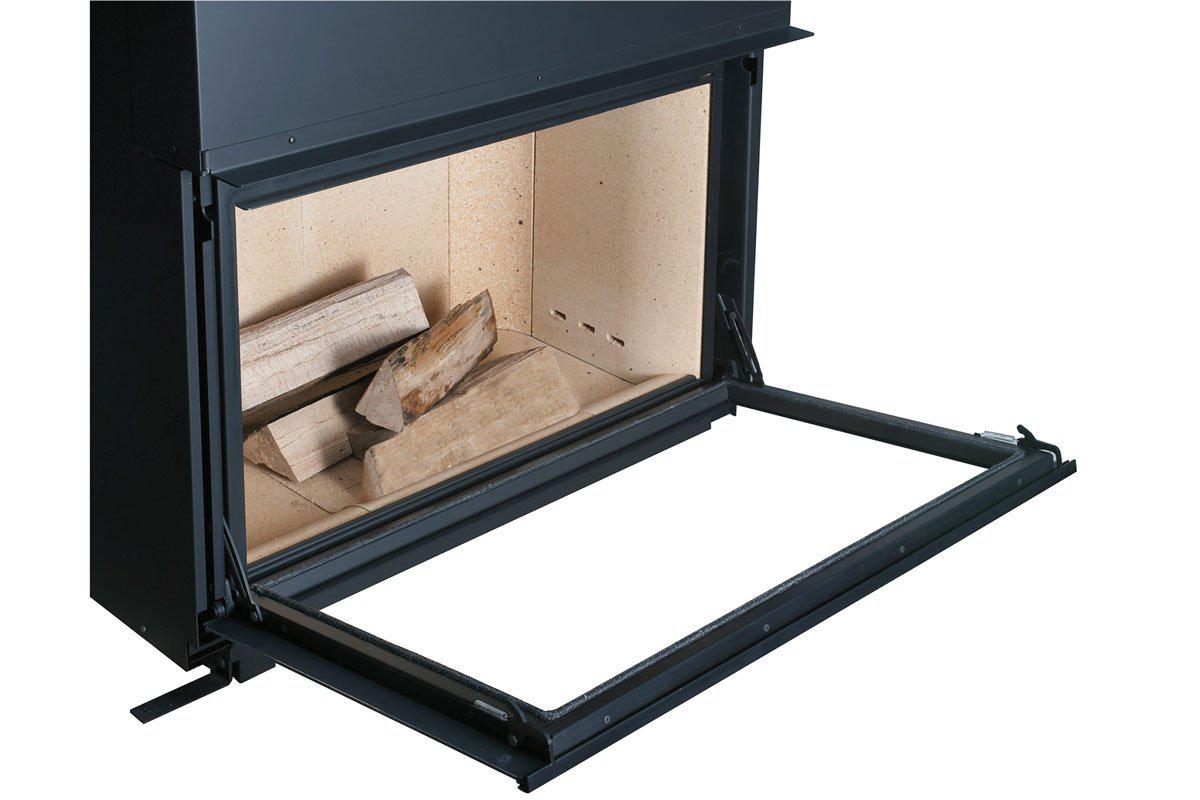

The Ulys 900 is a luxury inset stove which has a nominal heat output of 15.9kW, but can produce more if needed. The door has glass extending to the edge, giving the frame a deep black finish and to open it simply slides up and into the wall. Suitable for use in home with MVHR

Technical
General
HEIGHT (MM) 1618
WIDTH (MM) 939
DEPTH (MM) 644
INTERNAL DIAMETER OF FLUE OUTLET (MM) 175-225
FLUE DIAMETER (MM) 230
FUEL Wood
AIRWASH Yes
ECODESIGN READY Yes
ENERGY EFFICIENCY CLASS A
WEIGHT (KG) 264
MAX LOG LENGTH (CM) 60
Normal Rate
NOMINAL HEAT OUTPUT (kW) 15.9
EFFICIENCY (%) 79
CO EMISSIONS (% @ 13% O2) 0.16
DUST EMISSIONS (MG/M3 @ 13% O2) 60
WOOD CONSUMPTION (KG/H) 4.32
Reduced Rate
HEAT OUTPUT (kW) 5.3
WOOD CONSUMPTION (KG/H) 1.44
Dimensions

Fondis Ulys 900 Dimensions

Downloads

Fondis Ulys Manual (pdf)

Installation Supplement (pdf)

MVHR Manufacturers Declaration (pdf)

Ulys Fire Brick Exploded Diagram (pdf)

Ulys Frame Fitting Guide (pdf)
