ESSE 500
The ESSE 500 has the familiar arched door and cast-iron body of a traditional stove. At 530mm high, 430mm wide and 350mm deep, it is a compact choice when you want that classic ESSE look without a broad front.
£1,220.00
Guide price including VAT. We will confirm your chosen options, availability and delivery in your quote.
What you will notice

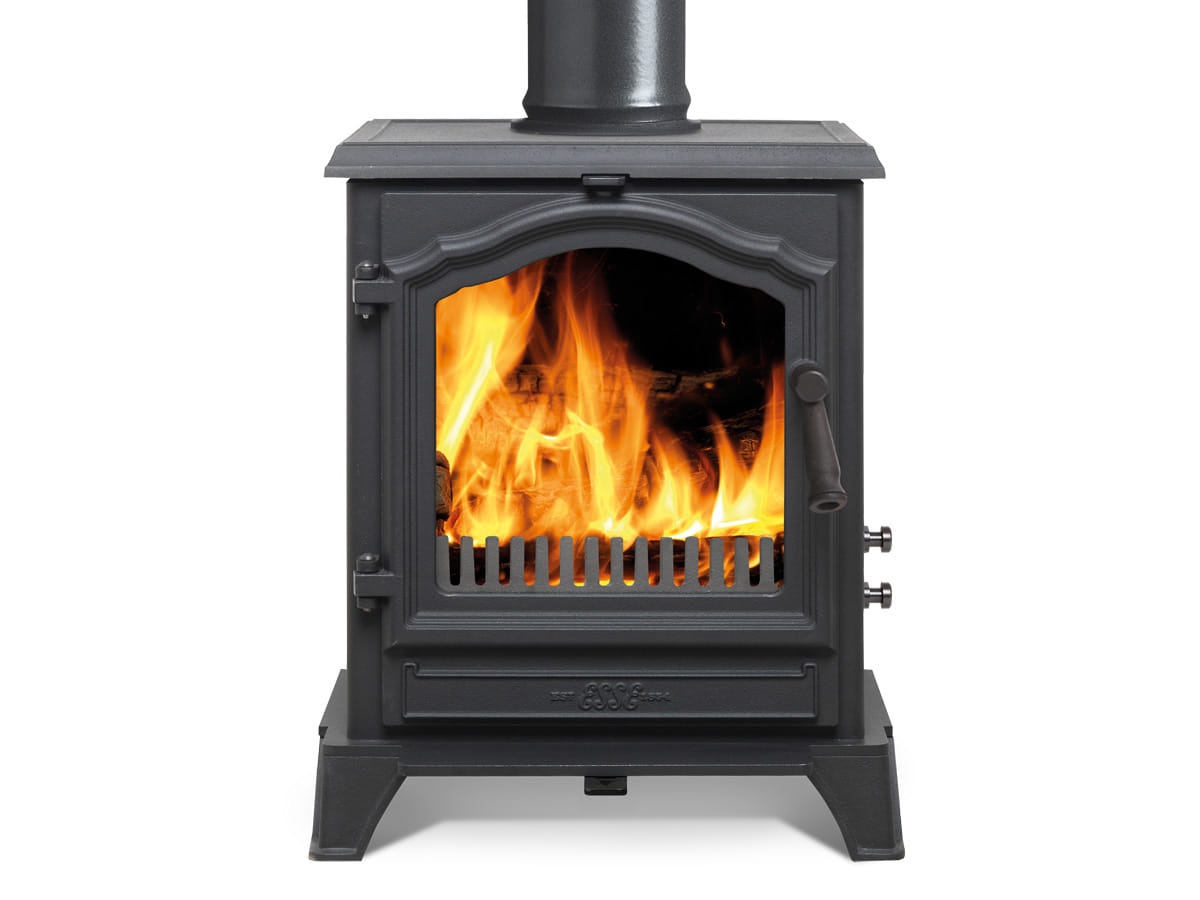

The classic arched door
The arch and cast-iron front give the 500 a different character from the square-fronted 525 and the simpler 550. It is a good one to compare if you have a traditional surround.
A compact front
At 430mm wide, the 500 is 176mm narrower than the ESSE 105. It is 60mm deeper, so check the depth as well as the width of your fireplace.
Optional log store
The 220mm log store is a separate option that raises the stove. Tell us if you want it included, and we will check the full height and position with you.
Inside the ESSE 500
The 500 has a nominal 5kW output, 82.9% efficiency and an A+ rating. Choose a top or rear flue connection. An optional 220mm-tall log store raises the stove, changing both its height and how the fire sits in your fireplace.
Compare with other ESSE stoves
The 525 has a square fire view and cylindrical pillars, with the same nominal output and efficiency. It is slightly larger at 440mm wide and 380mm deep. The 550 is taller and narrower at 600mm high and 372mm wide. Of these three, the standard 500 is the lowest and has the traditional arched front.
Planning your installation
Choose the standard stove or log-store version before planning its position. Your installer will check the hearth, clearances and 125mm flue connection for that setup. The shared 500/525/550 manual includes the instructions for the 500.
Specifications
- Heat output: 5.0kW
- Efficiency: 82.9%
- Energy rating: A+
- Dimensions (height × width × depth): 530(h) x 430(w) x 350(d)mm
- Flue Pipe Diameter: 5" (125mm)
- Weight: 64kg
- Flue arrangements: Top or rear
- Optional log store: 220mm tall; separately specified
Questions about the ESSE 500
-
The 220mm-tall log store is optional. We can include it and its price separately in your quote.
-
The standard 500 is 530 × 430 × 350mm and the 105 is 632 × 606 × 290mm, in height × width × depth order. The 500 is shorter and narrower, but deeper.
-
Yes, top and rear arrangements are available. Confirm your choice when ordering so your installer can check the connection.
-
All three have a nominal 5kW output and 82.9% efficiency. Their size and style are the main differences to compare.
