DOVRE Rock 500

Dovre Rock 500 WOOD BURNING STOVE

The Dovre Rock 500 Wood Burning Stove is a big bold contemporary styled wide bodied wood burning stove with a nominal 9.0kW heat output to match the huge visual statement it will make in the largest of rooms. Its minimalist gently rounded industrial chic looks and precision moulded all-cast iron construction conceal an advanced low emissions combustion system with powerful full width airwash to keep its widescreen window clear. With an A+ rated 80% efficiency the Rock 500 is also going to be very economic to run.

The Rock 500's push close door with its concealed hinges covers the whole of the fire chamber front to maximise the width of the window and emphasise the stoves overall clean lines. The designers heave even placed its polished steel pebble-shaped handle at the side. This can be simply and safely removed when not being used to ensure that it always stays cool to touch for when you next need to use it. The Rock 500 will easily handle logs up to 500mm (24") long.

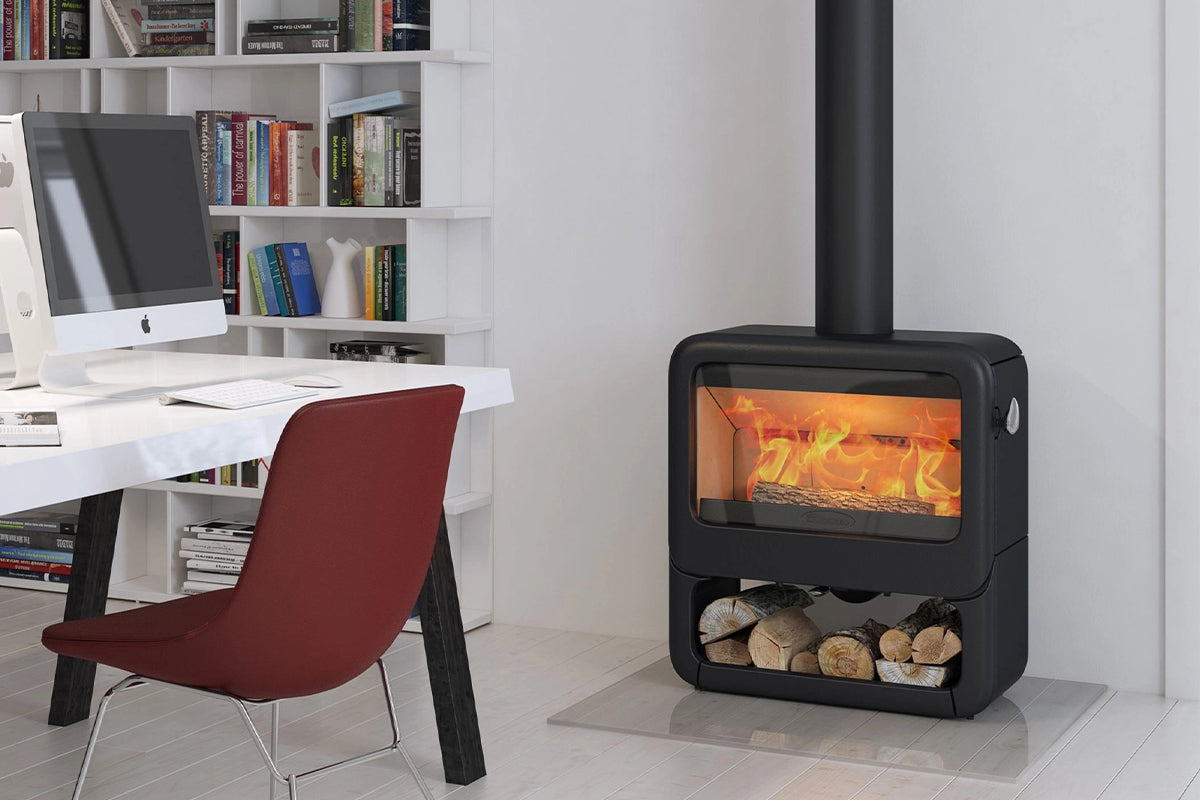

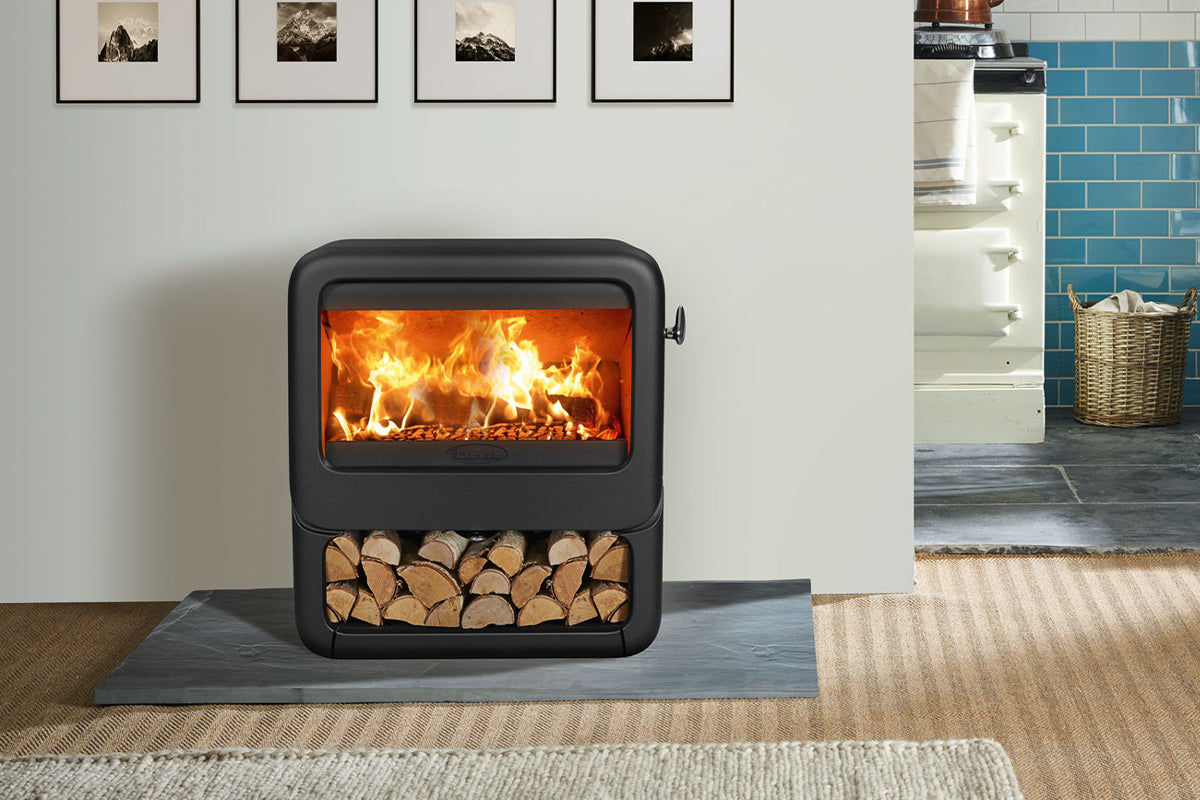

A discrete single user-friendly slider control delivers precise combustion air management for the Dovre Rock 500's generous 3.0kW to 11.0kW heat output range and to control its wonderful landscape flame patterns. Direct external air supply capability is standard and this will allow you to avoid having to install a large building regulations compliant dedicated air vent and the associated cold draughts you get with these. The standard Dovre Rock 500 comes with a tablet stand with closed sides and open front or you can choose the optional integral log box version with its striking matching curved features. Both are the same 745mm height. Also check out the 150mm (6") narrower Dovre Rock 350.

NB The basic leg version and grey enamel have both been discontinued by Dovre




Key Facts

DOVRE Rock 500 Wood Burning Stove Key Facts

DOVRE Rock 500 Wood Burning Stove KEY FACTS
Output – Nominal 9.0kW
Output Range 3.0kW to 11.0.0kW (depending on fuel load)
Efficiency Up to 80.0% / A+
Defra Approved No
Fuel Wood only
Fuel bed Ribbed cast iron grate with ash removal port and ash pan
Airwash Yes – full width
Air Controls Single slide control for primary booster and secondary air management
Construction Premium grade all cast iron body and door (and log store option)
Flue Outlet Top and rear
Flue Diameter 150mm / 6"
Guarantee 5 Years from authorised Dovre dealer
Maximum Log Length 500mm / 20" approx
Finish Black paintwork
Net Weight Approx 130kg + 20kg for log store option
Air Vent Required Yes (if not using the direct air connection)
Suitable for 12mm hearth Yes – subject to Building Regs (TBC)
Direct Air Inlet (DEAS) Yes, 100mm dia
Overall Dimensions mm H745  W660  D375
Distance to combustible (mm) Side 600  Rear 520
Options Matching integral cast iron log store



Downloads
https://cdn.shopify.com/s/files/1/0407/5408/6047/files/Astroline_3-4_Installation_User_Instructions.pdf?v=1648801325DovreDovre Rock Series Insstructions



Dimensions

Dovre Rock 500 Wood Burning Stove Dimensions

Dovre Rock 500 Wood Base DimensionsDovre Rock 500 Tablet Base Dimensions
