Ekol Baked Apple 4.0kW Stove with Top Oven

At just over 26" high the Baked Apple stove with top oven makes a great off-grid cooking and heating solution

The compact Baked Apple wood burning stove is actually the Ekol Apple Core stove but with the addition of their matching cast iron Top Oven module. The oven will easily take a 200mm diameter by 130mm high oven dish or 200mm square baking tray. With an overall height of just under 26", this not only makes the Baked Apple a great heating and cooking combination for smaller fireplace openings but also a highly practical solution for non-domestic 'off-grid' installations, such as garden offices, canal boats and shepherds' huts. In fact, anywhere you need to keep warm and would like to have the ability to rustle up some hot food then the Baked Apple is going to make an excellent companion. Apart from the top oven, the stove itself also comes with a reversible cast iron pizza / griddle shelf as standard and as part of the Apple Pie collection there's also a host of other useful options that you can add to the Baked Apple such as sturdy stainless steel right and left hand side pan shelves and stainless steel warming plate with top safety rail.

The Baked Apple's smaller 100mm (4") diameter top or rear fitted flue will certainly help with the safe operation of the reduced flue heights typical in 'off-grid' installations, as will its very controllable heat output range of 1.0kW up to 4.1kW which will be more than enough for the associated confined spaces of these type of buildings. Its 82% efficiency is at the top end for an ultra-low emissions Ecodesign stove and combined with Defra smoke exemption this makes the Baked Apple one of the most environmentally friendly compact wood burners you can buy. If you're stuck short term for a wood supply it will also burn smokeless coal. The all-cast-iron Baked Apple features low distances to combustible materials which can be further reduced with the optional steel heat shielding enclosure. The stove's wonderful contemporary looks can be further enhanced with a choice of nine designer colours, apart from the standard metallic black, either for the whole stove or simply just for contrasting doors. There's also a burnished door option.

Baked Apple Stove options

• Cast Iron Pedestal Base / Store Stand with adjustable shelf
• Stainless steel warming plate (W230 x D240 mm)
• Stainless steel warming plate 30mm high safety guard rail (a must for confined spaces)
• Stainless steel shelf – handle / left side
• Stainless steel shelf – hinge / right side
• Space-saving rear vertical flue adaptor
• Direct external air supply (DEAS) box – takes 80mm ducting

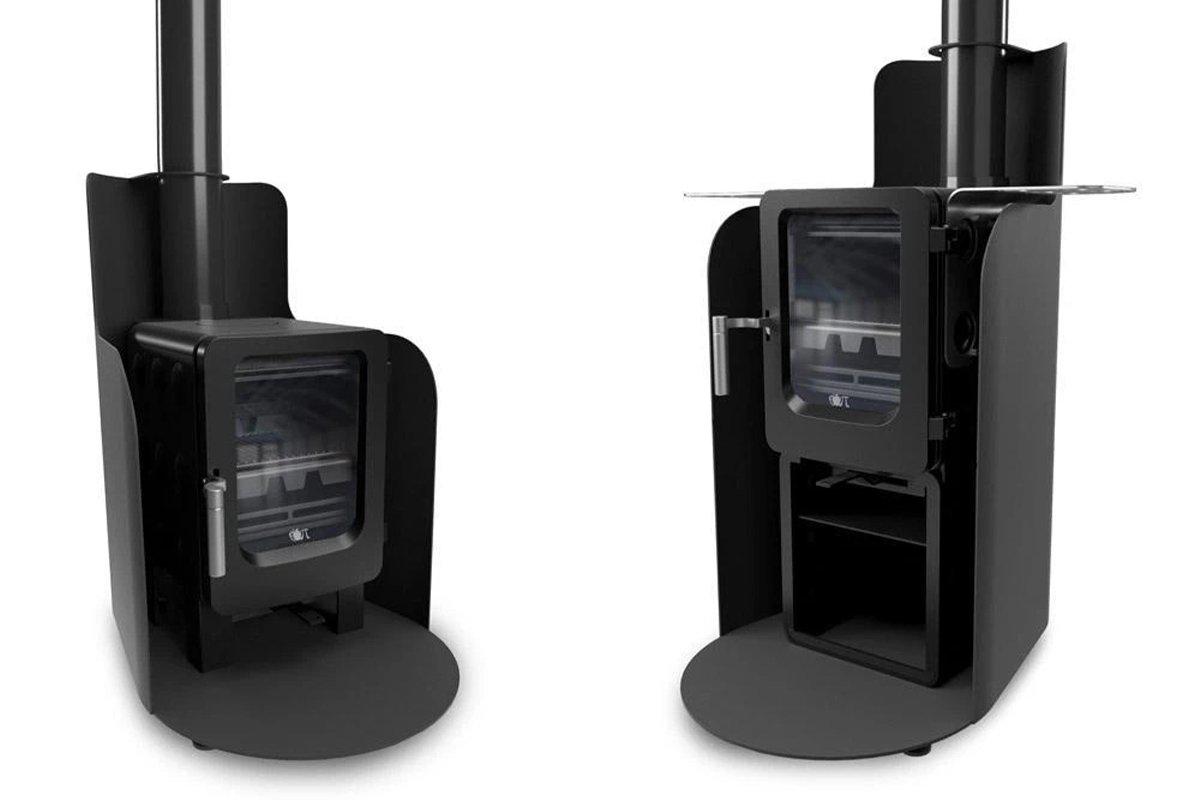

• Short plate steel enclosure (716mm high) – reduces combustible distances
• Tall plate steel enclosure (931mm high) – reduces combustible distances

For Pedestal Base / Store Stand option please check out the Baked Apple Stack model listed separately.

Key Facts

Brand Ekol ApplePie
Heat Output 4.0kW nominal
Heat Range 1.0kW up to 4.1kW depending on load
Efficiency (Net) 82.0%
Defra Smoke Exempt Yes
2022 Ecodesign Yes, SIA Ecodesign Ready
Construction All Cast Iron Bodywork and Door
Flue Outlet Top or Rear 100mm (4")
Fuel Bed
Open Grate and Ash Pan (Wood / SMF)
Finish Metallic Black
Optional Finishes 9 Bodywork / Door Colours inc' Burnished Door(s)
Ideal Log Length 200mm (8")
Weight 60kg
Air Vent Required Not usually for pre 2008 homes
Direct Air Yes, optional air box to take 80mm dia ducting
Minimum Distances  Rear 250mm Sides 350mm (for single skin flue pipe)
12 mm Hearth Yes (Subject to Building Regulations)
Controls
Single Slider for Primary, Secondary and Tertiary Air
Guarantee 10 Years Bodywork (Subject to T&Cs)

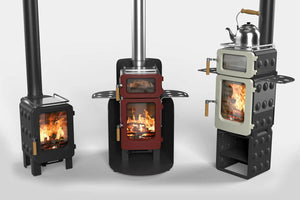

Other Models Apple Core, Apple Stack and Baked Apple Stack


The ‘ApplePie’ range by Ekol

Baked Apple Stove Downloads
