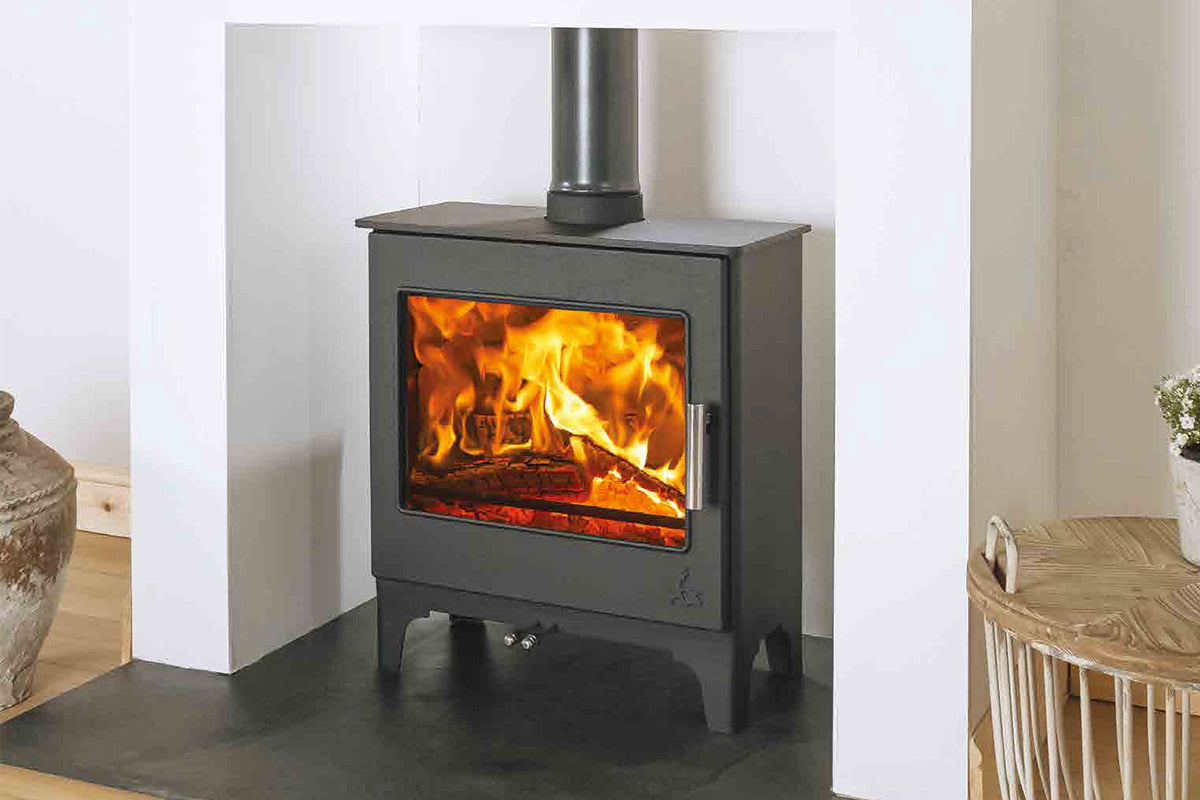

Woodbury Slimline 5 Eco


With its large air washed glass area and clean design lines Dean Stove's stunning Woodbury Slimline 5 Eco has been designed to deliver a big visual presence in any style of fireplace or interior. It is 125mm (5") wider than the Woodbury 5 Eco which makes it ideal for the larger fireplace opening or inglenook in small to medium sized living spaces. The Woodbury Slimline also features optional direct external air supply (DEAS) capability so that it will work well in a post 2008 home where otherwise a dedicated air vent would have to be installed. In addition, since most post-2008 homes do not feature a constructional hearth, this is a stove that can be safely installed on a non-combustible decorative hearth such as a slate or granite paver.

Dean stoves have been making wood burners and multi fuel stoves in Devon for over have a century and that experience and expertise is evident everywhere in the hand built Defra approved Woodbury Slimline. From the subtle window outlining on the British cast iron slimline door with its concealed hinges and cool touch stainless steel handle to the precision management of the flame height and heat output delivered from the separate primary and preheated secondary air controls. In terms of efficiency and emissions it doesn't get much better than the Woodbury Slimline's combination of A+ rated 81.4% efficiency (wood) and Level 5 ClearSkies emissions accreditation – the best current level achievable that indicates cutting edge performance well beyond the tough Eoodesign requirements.

All in all the 5.0kW Woodbury Slimline is a beautifully proportioned stove providing you with outstanding fuel economy and very easy operation and is definitely amongst the very finest British-made stoves available today. This is a stove that is more than capable of giving the Scandinavians a good run for their money and is certainly worthy of your consideration. With the Woodbury Slimline Dean Stoves give you a choice of either a wood burning only version or a multi fuel version with grate and ash pan and, of course, there's also the narrower Woodbury 5 Eco stove to consider. The Woodbury Slimline 5 Eco carries a 5-year manufacturer's warranty from one of the UK's most respected stove makers.



Heat output  nominal  5.0kW
Output range   3.0kW to 7.0kW depending on fuel load (estimate)
Efficiency                           81.4% Wood / 79.1% Smokeless Coal
ErP Energy Rating                            A+(Wood)
Defra Approved                                  Yes
ClearSkies  Level 5 (the highest Level)
Fuel                                                    Seasoned wood logs / Approved smokeless coal
Airwash                                                Yes
Air Controls                                          Two separate push-pull controls
Construction                                          British cast iron door and premium quality steel bodywork
Flue Outlet                                             Top or Rear
Flue Diameter                                    125mm  / 5"
Grate Type                                            Wood burner has flat bed / MF model has open multi fuel grate with ash pan
Guarantee                                              5 Years
Maximum Log Length                         400mm (16")
Standard Colour                          Matt Black
Optional Finishes                            8 designer colours including Grey, Charcoal, Champagne and Mushroom
Options                                        Wood burning or multi fuel model options
                                                    Direct external air supply manifold
                                                    Back Box – space saving 180mm deep rear flue adaptor
Weight                                              N/A
Air Vent Required                                Not usually in pre-2008 homes (Subject to Building Regs)
Suitable for 12mm hearth                       Yes
Direct External Air Inlet (DEAS)         Yes. Closed Combustion Manifold required
Overall Dimensions mm                       H635  W585  D325 (375 inc handle)
Combustible Distances mm                   Sides 500  Rear 250



Dean Stoves Woodbury Slimline 5 Eco Download Files:

Woodbury Slimline 5 Eco Operational Instructions

Dean Stoves Brochure
